NH Research 9410-12
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 12 A |
| Output Power | 7200 W (7.2 kW) |
| Input Voltage | 208 V AC, Three-Phase |
| Input Frequency | 47 – 63 Hz |
| Regulation Mode | Constant Voltage (CV) / Constant Current (CC) |
| Programming Interface | IEEE-488 (GPIB) / RS-232 |
| Output Voltage Accuracy | ±0.1% of Full Scale |
| Output Current Accuracy | ±0.1% of Full Scale |
| Cooling Method | Forced Air Cooling |
NH Research 9410-12 Options:
- 9410-12 - HV - High Voltage Output (400V L-N range)
| Model | 9410-12 |
|---|

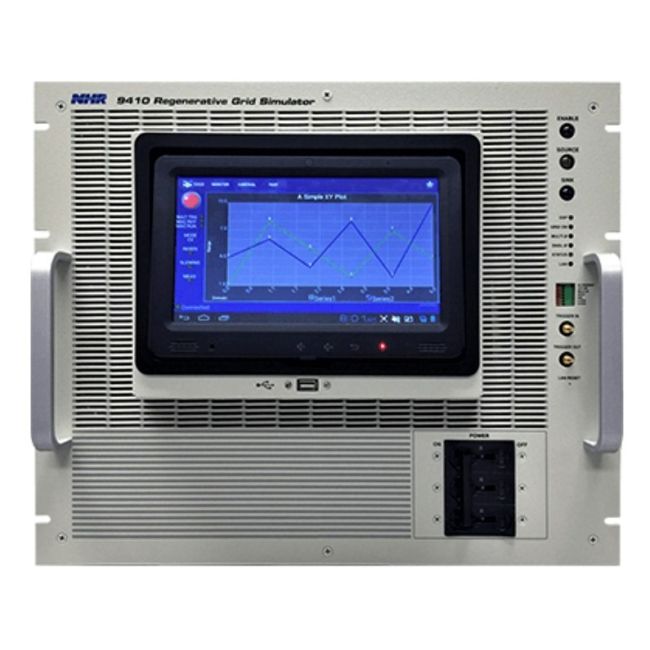

The NH Research 9410-12 Regenerative Grid Simulator delivers 12kW, 24kVA with fully programmable 1, 2, or 3-phase operation. It supports AC voltage from 0–310/400 VRMS L-N, DC output of 200/400V, and frequency range from DC to 100Hz. This advanced 4-quadrant AC source integrates a 125k Sample/sec digitizer for precision waveform capture, plus selectable voltage/current ranges for enhanced accuracy.
Ideal for inverter, UPS, and grid-connected device testing, the NHR 9410-12 offers scalable power modules, regenerative sink capability, and user-defined waveshapes for development, lab, and production environments.
Testwall can supply the used NH Research 9410-12, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9410-12.
