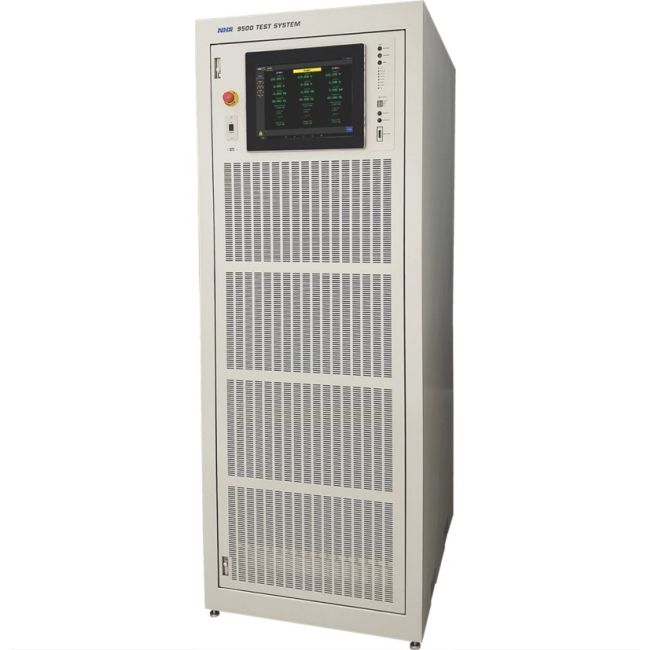

NH Research 9510-75
| Attribute | Value |
|---|---|
| Output Power | 75 kW |
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 250 A |
| Input Voltage | 480 V AC, Three-Phase |
| Input Frequency | 47 – 63 Hz |
| Efficiency | Up to 95% |
| Cooling Method | Forced Air Cooling |
| Communication Interfaces | CAN, RS-232, Analog I/O, Digital I/O |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount / Cabinet |
| Model | 9510-75 |
|---|
The NH Research 9510-75 Regenerative Grid Simulator offers a programmable frequency range of 30Hz to 120Hz with AC, DC, or AC+DC outputs in single, split, or 3-phase modes. It features a built-in power amplifier for PHIL applications, enabling advanced simulation for grid-tied systems. Users benefit from flexible testing of disturbances like LVRT, harmonics, and transient anomalies, supported by an internal 125kSample/s digitizer for waveform capture.
Ideal for research labs and regulatory compliance testing, the 9510-75 also functions as a power analyzer with true power, reactive power, apparent power, power factor, and crest factor measurements.
Testwall can supply the used NH Research 9510-75 Regenerative Grid Simulator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9510-75 Regenerative Grid Simulator.
