NoiseCom
NoiseCom NC346D
Broadband Noise Source.
1 MHz to 1000 MHz Frequency Range
-50 dBm to -10 dBm (nominal) Output Power
Gaussian White Noise Noise Type
50 Ohms Output Impedance
SMA Female Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 1000 MHz |
| Output Power | -50 dBm to -10 dBm (nominal) |
| Noise Type | Gaussian White Noise |
| Output Impedance | 50 Ohms |
| Output Connector | SMA Female |
| Flatness | ±1.5 dB across frequency range |
| Power Supply | +15V DC |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Form Factor | Benchtop Module |
| Model | NC346D |
|---|

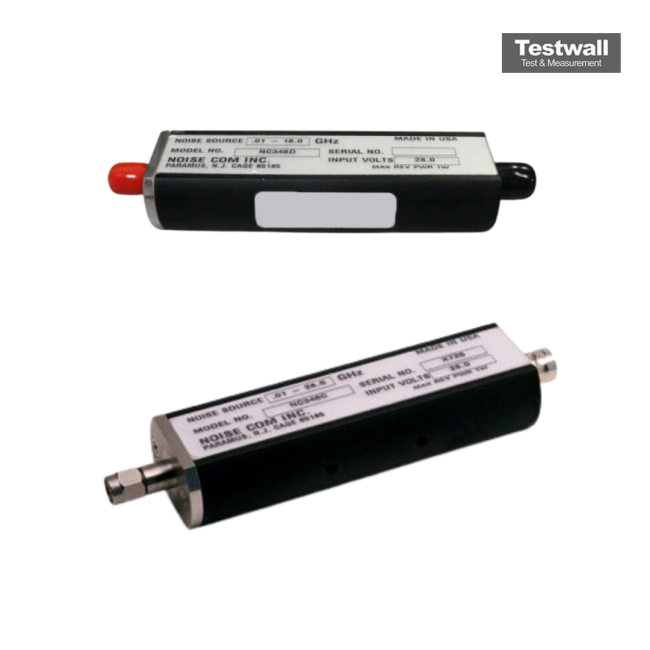

The Noisecom NC346D is a 10 MHz to 18 GHz Broadband Noise Source.
NoiseCom NC346 Series is designed for precision noise figure measurement applications.
The VSWR has been improved, reducing multiple reflections of the test signals and significantly increasing the measurement accuracy of most noise figure set-ups.
