Noiseken INS-4040
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±4000 V |
| Output Current | Up to 40 A (peak) |
| Pulse Width Range | 1 ns to 1 ms |
| Rise Time | Less than 1 ns |
| Repetition Rate | 1 Hz to 1 MHz |
| Output Impedance | 50 Ω |
| Applicable Standards | IEC 61000-4-2, ISO 10605 (ESD Immunity Testing) |
| Power Supply Requirement | AC 100–240 V, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C |
| Interface / Control | GPIB, RS-232, and front panel manual control |
| Model | INS-4040 |
|---|

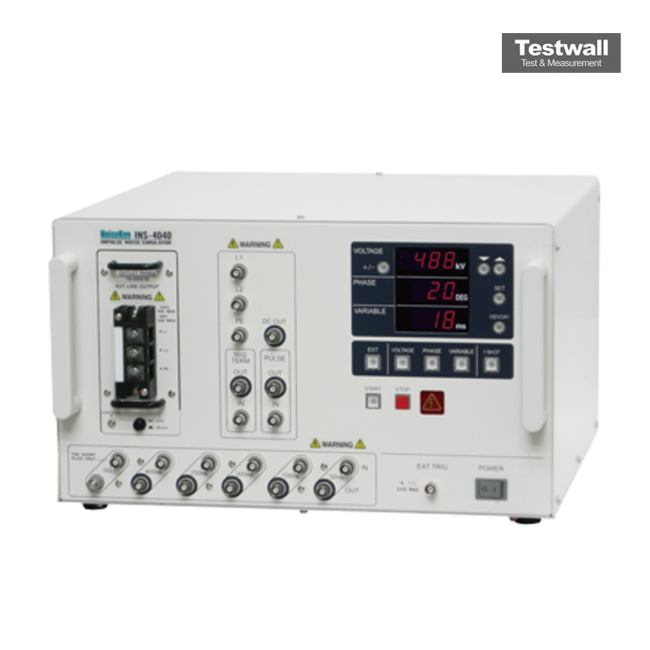

The Noiseken INS-4040 4KV Impulse Noise Simulator is designed to generate precise impulse noise signals up to 4kV, ideal for EMC testing and electronic component evaluation. It offers adjustable pulse widths, repetition rates, and high accuracy output, ensuring reliable simulation of transient noise conditions. Built with robust circuitry, it meets demanding laboratory and production line requirements.
This unit is suited for assessing immunity of devices to electrical noise, aiding in compliance testing and product reliability validation across various industries.
Testwall can supply the used Noiseken INS-4040 4KV Impulse Noise Simulator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Noiseken INS-4040 4KV Impulse Noise Simulator.
