North Atlantic 5300
| Manufacturer | North Atlantic |
| Model | 5300 |
| Product | Programmable Synchro/Resolver Standard & Simulator |
| Type | Used |

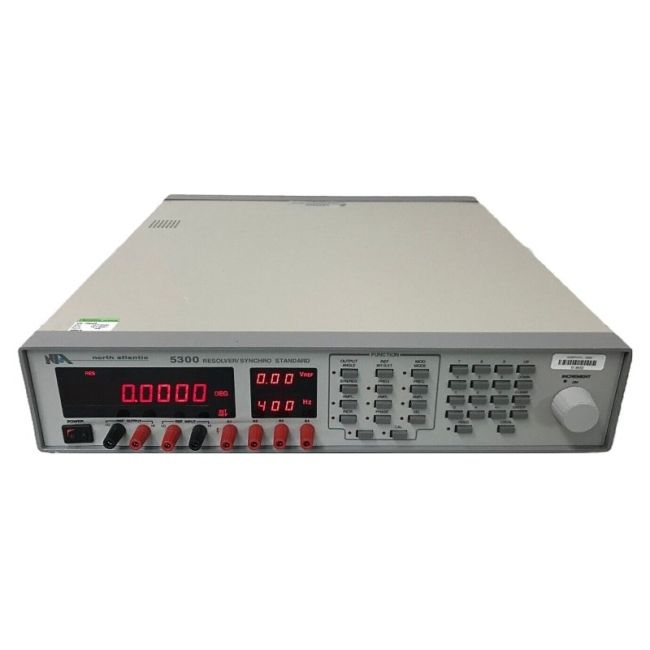

NORTH ATLANTIC 5300
The North Atlantic 5300 Programmable Synchro/Resolver Standard & Simulator is a laboratory grade programmable Synchro / Resolver Standard and Simulator. The NA 5300 may be used as a standard for calibrating and testing automatic test equipment (ATE), or used to measure angle position indicators (API) and Synchro-to-digital converters for static or dynamic characteristics. The North Atlantic 5300 may also use an external reference waveform. The 5300 is self contained and can be remotely controlled by a computer via the interface connector on the rear panel. The 5300 is self calibrating, compensating for errors due to changes in voltage and frequency settings, temperature and long-term drifts.
Features and specifications of the North Atlantic 5300 Synchro/Resolver Standard & Simulator include:
- 0.0001 ° Resolution
- 2 Arc Second Accuracy
- Continuous CW or CCW Rotation to 100,000 °/sec
- Frequency: 47 Hz to 20 kHz
- Simulates a variety of static or continuous Synchro/Resolver rotation from slow roll to fast slew rates
- Provides a True Synchro/Resolver Standard for Calibration/Metrology Labs, Engineering Design, ATE or Production Test Environments
- Built-in Reference Generator
- Rack Mount & Bench Top
