Noyes Fiber Systems M700
| Attribute | Value |
|---|---|
| Measurement Range | Up to 250 km (single-mode), depending on fiber and pulse width settings |
| Dynamic Range | Up to 45 dB (single-mode), providing high sensitivity for long-distance fiber testing |
| Wavelengths Supported | 1310 nm and 1550 nm (single-mode); 850 nm and 1300 nm (multimode) |
| Display Type | Large color LCD touchscreen for easy trace viewing and navigation |
| Pulse Width Options | 3 ns to 20 µs, selectable for optimized near-end and far-end event resolution |
| Event Dead Zone | As low as 1 meter, enabling detection of closely spaced fiber events |
| Data Storage | Internal memory plus USB port for external storage of OTDR trace files |
| Battery Life | Approximately 8 hours of continuous operation on a fully charged battery |
| Operating Temperature | -10°C to +50°C (-14°F to +122°F) for field deployment in varied environments |
| Connector Interface | Universal adapter port compatible with SC, ST, FC, and LC fiber connectors |
| Model | Fiber |
|---|

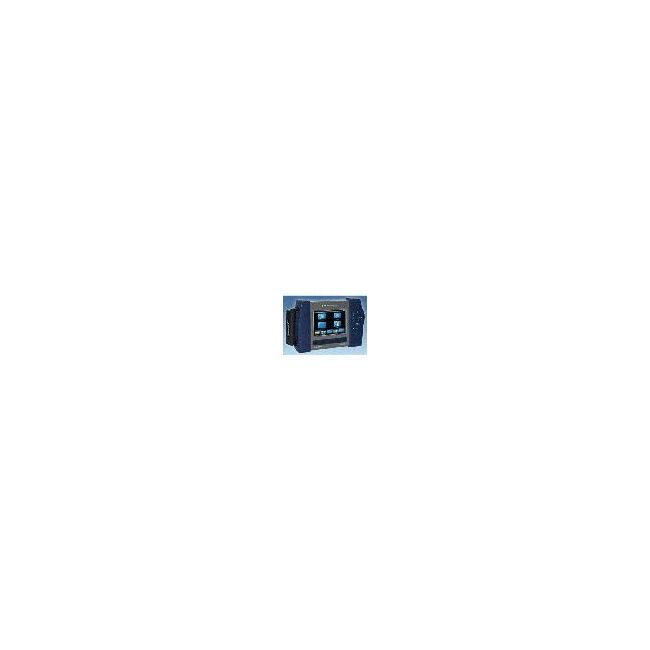

The Noyes Fiber Systems M700 OTDR delivers advanced testing capabilities with Real-Time, Full-Auto, and Expert modes, offering precision event analysis and dual-wavelength testing. It features a 6.5-inch transflective touch screen for clear indoor and outdoor visibility, integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL), tool-free switchable test port adapters, and USB connectivity. Storage is versatile with internal memory and USB support, while the rechargeable Li-Ion battery ensures over 8 hours of field operation.
Designed for reliable fiber network evaluation, the M700 allows users to set custom pass/fail thresholds and marginal event warnings. With Least Squares Approximation (LSA) loss methods, operators can manually refine event analysis for precise measurements.
Testwall can supply the used Noyes Fiber Systems M700, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Noyes Fiber Systems M700.
