Noyes Fiber Systems SMLP5-5
| Attribute | Value |
|---|---|
| Fiber Type | Singlemode |
| Wavelengths | 1310 nm / 1550 nm |
| Output Power | -5 dBm (nominal) |
| Connector Type | SC/APC |
| Light Source Type | Laser Diode |
| Modulation Modes | CW, 270 Hz, 1 kHz, 2 kHz |
| Power Supply | 2 x AA Batteries |
| Battery Life | Approximately 40 hours |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | Approximately 152 mm x 63 mm x 32 mm (6" x 2.5" x 1.25") |
| Model | Fiber |
|---|

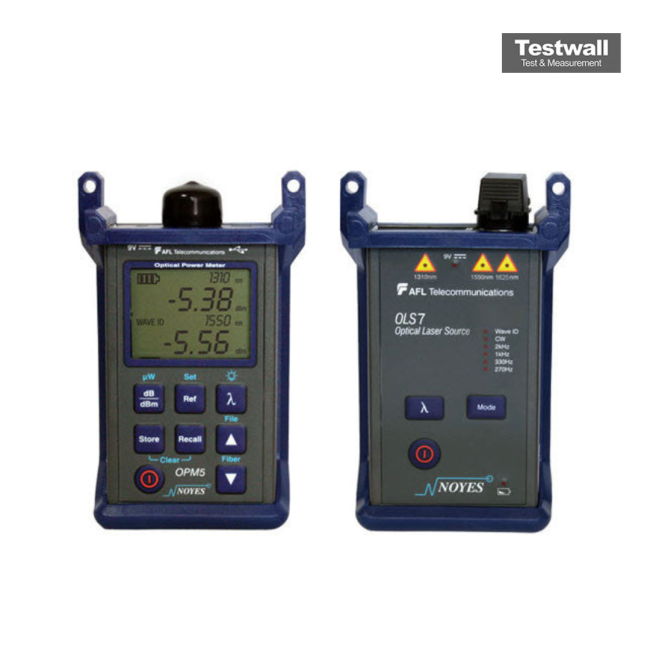

The Noyes Fiber Systems SMLP5-5 is a versatile fiber optic test kit integrating a precision optical light source and a power meter. It supports both single-mode and multimode fiber testing, enabling accurate measurement of insertion loss and optical power. Designed with a rugged, compact build, it is ideal for field and laboratory use, ensuring reliable performance under demanding conditions.
Its intuitive interface simplifies operation for technicians, making it well-suited for installation, certification, and troubleshooting of fiber networks. The portable design enhances usability across diverse testing environments.
Testwall can supply the used Noyes Fiber Systems SMLP5-5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Noyes Fiber Systems SMLP5-5.
