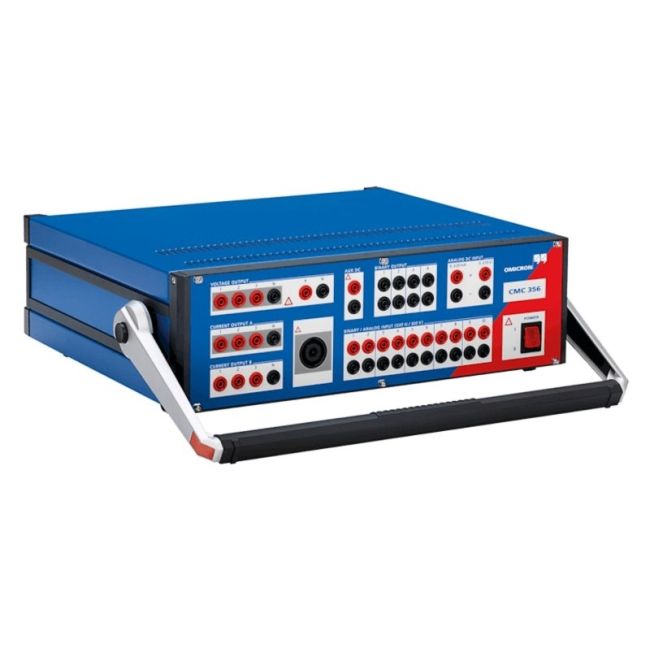

OMICRON CMC 356

RENT  An OMICRON CMC 356 Universal Relay Test Set (Call for availability)

The OMICRON CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six cur sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The OMICRON CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of cur transformers, by using primary injection of high currents from the test set.

The analog test signals for the OMICRON CMC 356 are generated digitally using DSP technology. This, in combination with the use of additional error correction algorithms, results in accurate testing signals even at small amplitudes.  All outputs are overload and short-circuit proof and are protected against external high-voltage transient signals and over-temperature.  Up to 12 independent channels with low-level signals are available at the back of the test set, which can be used to test relays which have a low-level input facility or to control external amplifier units.  Besides its operation with the powerful Test Universe software running on a PC, the CMC 356 can also manually be controlled with the highly flexible CMControl unit and the CMControl App running on an Android Tablet or a Windows PC.
