Ophir 5022A
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 20 W |
| Wavelength Range | 190 nm – 20 µm |
| Detector Type | Thermopile |
| Aperture | 22 mm |
| Maximum Average Power | 20 W |
| Maximum Power Density | 4 W/cm² |
| Spectral Absorptance | Spectrally flat broadband absorber coating |
| Response Time (95%) | 3.5 seconds |
| Connector Type | 7-pin DIN connector compatible with Ophir displays and interfaces |
| Operating Temperature | 15°C – 35°C |
| Model | 5022A |
|---|

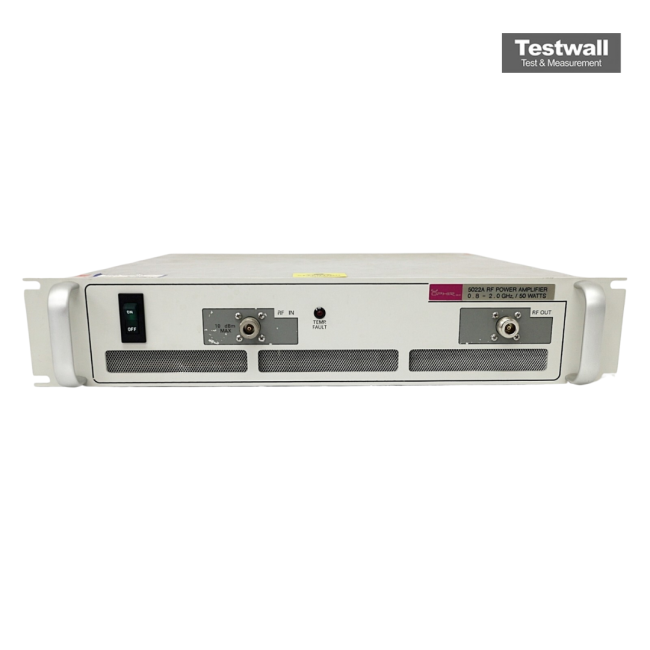

The Ophir 5022A is a solid-state RF power amplifier delivering 50 Watts across a wide 0.8–2.0 GHz range. It features Class A linear power devices that ensure excellent 3rd order intercept performance, high gain, and a broad dynamic range for demanding RF applications.
Ideal for broadband testing environments, the 5022A offers reliable amplification with consistent performance across its full frequency range, making it suitable for laboratory, communication, and research uses.
Testwall can supply the used Ophir 5022A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5022A.
