Ophir 5087
| Attribute | Value |
|---|---|
| Wavelength Range | 0.19 – 20 µm |
| Power Range | 10 mW – 300 W |
| Energy Range | 1 mJ – 999 J |
| Detector Type | Thermopile |
| Aperture | 30 mm |
| Measurement Modes | Power and Energy |
| Connector Type | Ophir 7-pin DIN |
| Maximum Average Power Density | 8 kW/cm² |
| Response Time | 0.5 seconds (to 95%) |
| Operating Temperature | 15 – 35 °C |
Ophir 5087 Options:
- 5087 - RE - Rear RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5087 - FE - Front RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5087 - R - Rear RF Connector model
- 5087 - F - Front RF Connector model
| Model | 5087 |
|---|

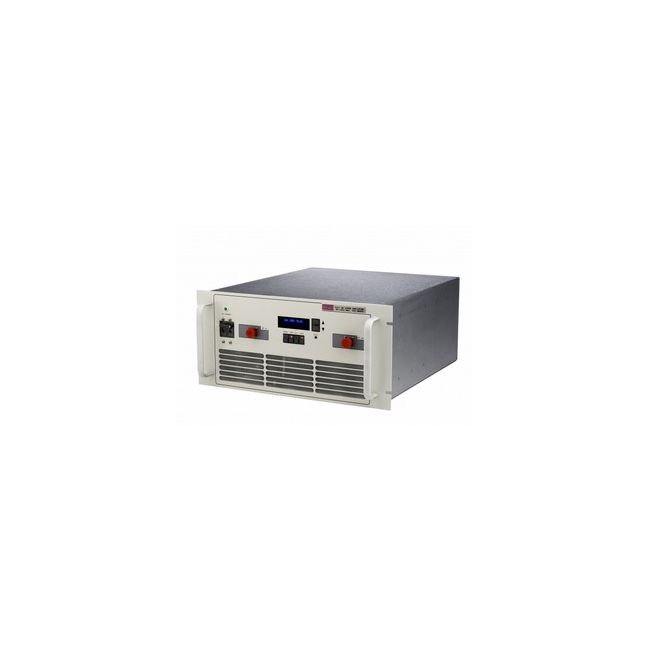

The Ophir 5087 is a 250 Watt broadband amplifier covering 10 kHz to 200 MHz, designed with Class A/AB linear power devices to ensure high gain, excellent 3rd order intercept point, and wide dynamic range. With a minimum output of 175 W at 1 dB compression, +55 dB small signal gain, and harmonics at -15 dBc typical, this amplifier delivers exceptional linearity and signal integrity. It features 50 Ohm input/output impedance, Type-N connectors, and internal forced air cooling.
Engineered for reliability, the Ophir 5087 operates efficiently under diverse formats including CW, AM, FM, PM, and Pulse. It withstands up to 95% non-condensing humidity, works at altitudes up to 10,000 feet, and maintains performance across 0°C to +50°C environments, ensuring robust use in demanding conditions.
Testwall can supply the used Ophir 5087, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5087.
