Ophir 5127
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 300 W |
| Spectral Range | 0.19 – 20 µm |
| Detector Type | Thermopile |
| Aperture | 30 mm |
| Maximum Average Power Density | 4 W/cm² |
| Response Time (95%) | 3.5 seconds |
| Absorber Type | Metallic Absorber |
| Connector Type | DB-15 |
| Compatible Meters | Nova II, Vega, Juno, StarLite, and other Ophir meters |
| Operating Temperature | 15 – 35 °C |
Ophir 5127 Options:
- 5127 - RE - Rear Panel model with RS232, IEEE, & Ethernet
- 5127 - FE - Front Panel model with RS232, IEEE, & Ethernet
| Model | 5127 |
|---|

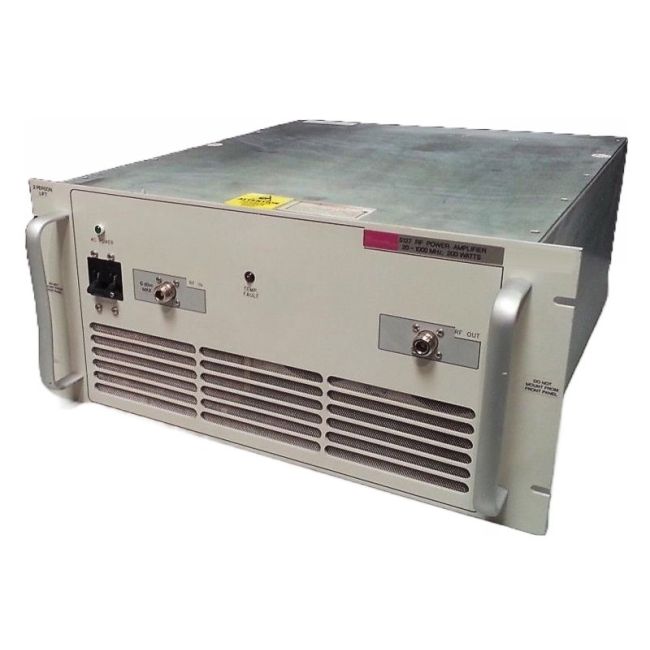

The Ophir 5127 is a 200 Watt broadband amplifier designed to operate over 20 MHz to 1 GHz. It features Class A/AB linear power devices, delivering +54 dB minimum small signal gain, excellent gain flatness within ±3.0 dB, and a typical saturated output power of 200 Watts. With IP3 at +57 dBm, input/output impedance of 50 Ohms, and harmonic suppression of -20 dBc, it ensures efficient and stable operation under demanding RF conditions.
Engineered for high efficiency and reliability, the Ophir 5127 supports CW, AM, FM, PM, and Pulse input formats, operating with 200–240 VAC single phase. Compact in a 19" rackmount enclosure, weighing 80 lbs, it includes forced-air cooling and durable connectors for stable long-term use in varying environments.
Testwall can supply the used Ophir 5127, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5127.
