Ophir 5173
| Attribute | Value |
|---|---|
| Wavelength Range | 0.15 - 12 µm |
| Power Range | 10 mW - 300 W |
| Energy Range | 20 µJ - 600 J |
| Detector Type | Thermopile |
| Aperture | 30 mm |
| Max Average Power Density | 4 kW/cm² |
| Max Peak Power Density | 50 MW/cm² |
| Spectral Flatness | ±3% (0.15 - 12 µm) |
| Response Time | 0.4 seconds (to 95%) |
| Connector Type | DB-15 |
Ophir 5173 1-3GHz 50W RF Amplifier Options:
- 5173 - F - Front Panel Connectors
- 5173 - FE - F Model W/ Control Option
- 5173 - FT - Fe Model W/ Ethernet Interface
- 5173 - R - Rear Panel Connectors
- 5173 - RE - R Model W/ Control Option
- 5173 - RT - Re Model W/ Ethernet Interface
| Model | 5173 |
|---|

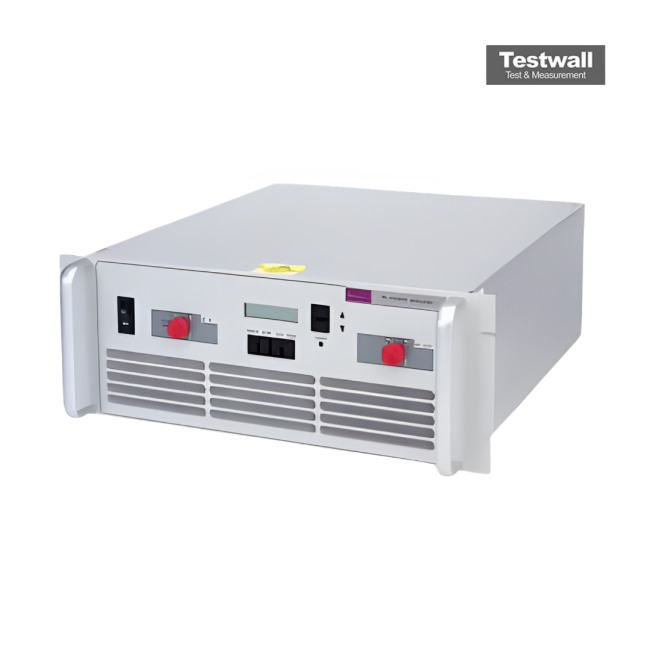

The Ophir 5173 is a 50W RF amplifier with a frequency range of 1–3GHz, offering a minimum gain of 48dB and gain flatness within 2dB. It delivers 40W minimum output power at 1dB compression and a typical saturated output of 50W. Utilizing Class A/AB linear power devices, it provides high dynamic range and excellent 3rd order intercept performance in a compact, lightweight design.
Engineered for reliability, the Ophir 5173 combines high-efficiency operation with robust construction, making it ideal for demanding broadband amplification applications across diverse RF testing environments.
Testwall can supply the used Ophir 5173, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5173.
