Ophir 5293
| Attribute | Value |
|---|---|
| Sensor Type | Thermal Power/Energy Sensor Head |
| Power Range | 10 mW – 300 W |
| Energy Range | 0.1 mJ – 300 J |
| Spectral Range | 0.15 – 12 µm |
| Aperture | 30 mm |
| Maximum Average Power Density | 12 kW/cm² |
| Maximum Energy Density | 12 kJ/cm² |
| Response Time | 0.7 seconds (typical) |
| Connector Type | Compatible with Ophir Nova II, Vega, and Juno meters |
| Operating Temperature | 15 – 40 °C |
Ophir 5293 Options:
- 5293 - RE - Rear RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5293 - FE - Front RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5293 - R - Rear RF Connector model
- 5293 - F - Front RF Connector model
| Model | 5293 |
|---|

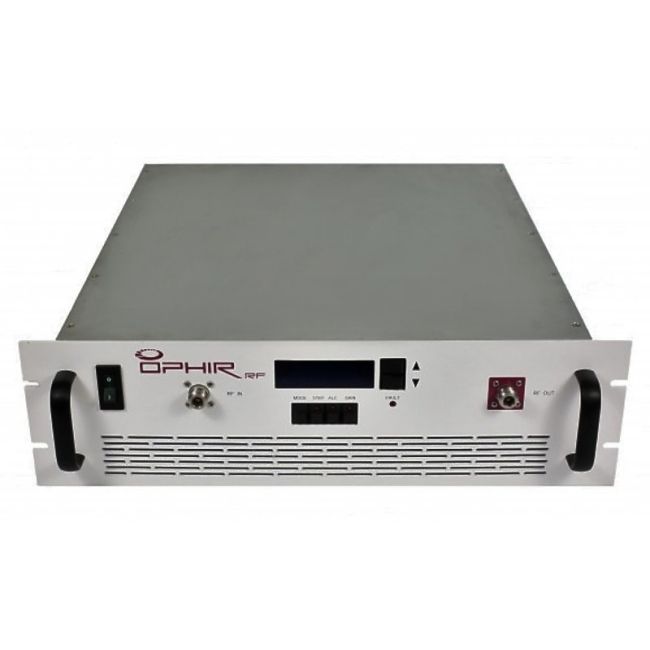

The Ophir 5293 is a 50 Watt broadband amplifier covering 700–6000 MHz. It employs Class A linear power devices for excellent 3rd order intercept, high gain, and wide dynamic range. Built with advanced components, it ensures reliable, high-efficiency operation with thermal, over-current, and over-voltage protections.
The optional front panel controller provides power monitoring, gain control, fault status, and VSWR protections. It supports remote operation via Ethernet, RS-232, or IEEE-488, with Automatic Leveling Control for stable output across varying conditions.
Testwall can supply the used Ophir 5293, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5293.
