Pacific Power 112LMX
| Attribute | Value |
|---|---|
| Output Voltage Range | 0–300 VAC (single phase) |
| Output Frequency Range | 45–500 Hz |
| Output Power Rating | 1.2 kVA |
| Output Current (Max) | 4 A RMS |
| Input Voltage | 105–125 VAC, Single Phase |
| Input Frequency | 47–63 Hz |
| Waveform | Low Distortion Sine Wave (THD <0.5%) |
| Programming Interface | Front Panel with Digital Display, RS-232 Serial Interface |
| Voltage Regulation | ±0.1% of full scale |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Pacific Power 112LMX Options:
- 112LMX - 100 - AC Input Voltage: 100 VAC, 1-Phase
- 112LMX - 110 - AC Input Voltage: 110 VAC, 1-Phase
- 112LMX - 120 - AC Input Voltage: 120 VAC, 1-Phase
- 112LMX - 200 - AC Input Voltage: 200 VAC, 1-Phase
- 112LMX - 220 - AC Input Voltage: 220 VAC, 1-Phase
- 112LMX - 240 - AC Input Voltage: 240 VAC, 1-Phase
- 112LMX - PPSC Test Manager SW License - PPSC Test Manager Software License
- 112LMX - Avionics or IEC Test Sequences - Avionics or IEC Test Sequences
| Model | 112LMX |
|---|

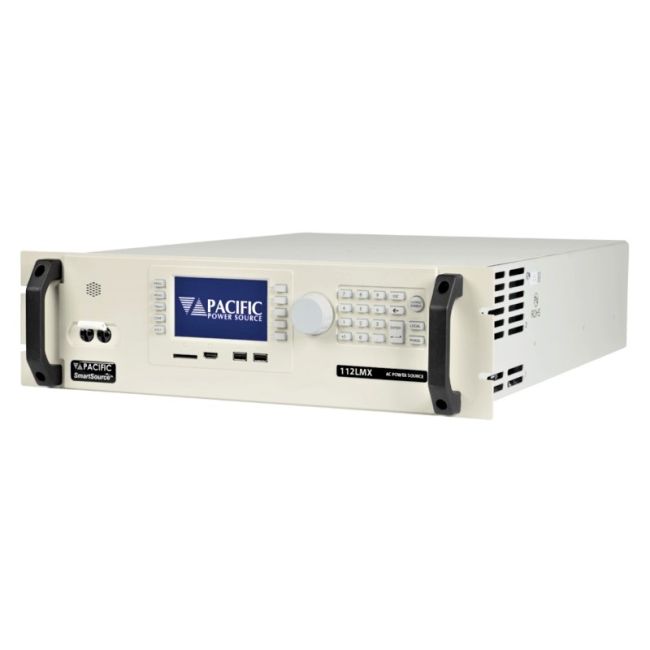

The Pacific Power 112LMX is a medium power member of the LMX-Series, offering low output voltage noise, minimal distortion, and excellent AC waveform fidelity. It delivers voltages up to 150VL-N (single-phase) or 300VL-L (split-phase) with a quartz-crystal stabilized output frequency spanning 15Hz to 5000Hz, making it suitable for demanding power applications.
Equipped with advanced analog power conversion technology, the 112LMX ensures superior voltage quality, high peak current capacity, and extensive harmonic support. Its versatile control options allow frequency conversion, harmonic testing, and programmable transient simulation for complex testing needs.
Testwall can supply the used Pacific Power 112LMX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Pacific Power 112LMX.
