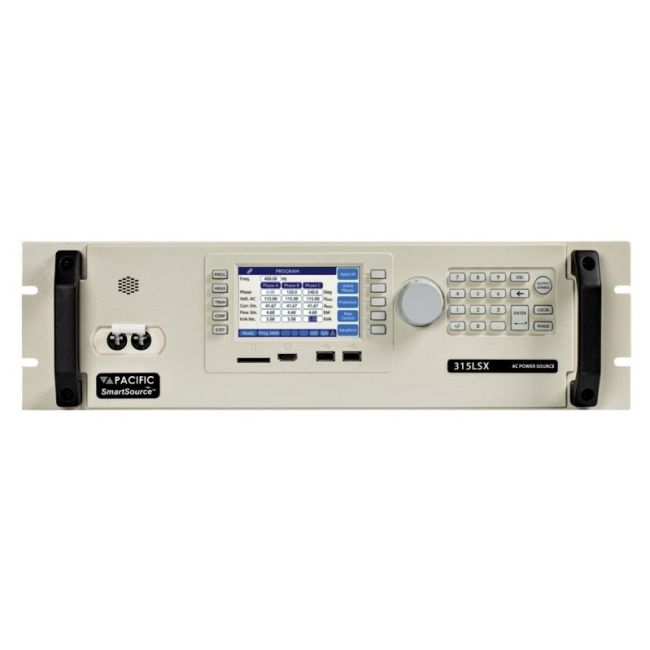

Pacific Power 315LSX
| Attribute | Value |
|---|---|
| Output Power | 1500 VA |
| Output Voltage Range | 0–300 VAC |
| Output Frequency Range | 45–500 Hz |
| Number of Output Phases | Single Phase |
| Input Voltage | 115/230 VAC |
| Input Frequency | 47–63 Hz |
| Waveform | True Sine Wave |
| Total Harmonic Distortion (THD) | Less than 0.5% at full linear load |
| Regulation | 0.1% load regulation |
| Form Factor | Benchtop |
Pacific Power 315LSX Options:
- 315LSX - T - Transformer Option (Direct/Transformer Coupled Selectable Output, 45 Hz - 1200 Hz)
- 315LSX - C - Interharmonics Generator Option
- 315LSX - E - Export Version
- 315LSX - LSXM - Reduced Feature Set Economy Version (Sine wave only, no transient programming, no harmonic measurements, no waveform capture, no programmable output impedance)
- 315LSX - PPSC Studio Control Software - Windows 10 64-Bit PPSC Studio Control Software
- 315LSX - PPSC Test Manager - Windows 10 64-Bit PPSC Test Manager Software
- 315LSX - ABD0100.1.8 - Test Sequence: Airbus A380, AC Power Groups
- 315LSX - ABD0100.1.8.1 - Test Sequence: Airbus A350, AC Power Groups
- 315LSX - AMD24C - Test Sequence: Airbus A400M, AC Power Groups
- 315LSX - Boeing 787B3-0147 - Test Sequence: B787, AC Power Groups
- 315LSX - MIL-STD704 - Test Sequence: US DoD, AC Power Groups
- 315LSX - RTCA-DO160 Section 16 - Test Sequence: AC Power Groups
- 315LSX - IEC Test Suite - Test Sequences: IEC61000-4-11, IEC61000-4-14, IEC61000-4-27, IEC61000-4-28 and IEC61000-4-34
- 315LSX - MIL-STD 1399-300B - Test Sequence: US DoD, Shipboard Power, AC Power Groups
- 315LSX - M99222 - External Transformer Option for 315LSX Model
| Model | 315LSX |
|---|
The Pacific Power 315LSX Power Source utilizes advanced low noise, low distortion analog power conversion technology, ensuring superior voltage quality and exceptional peak current capacity. Its wide frequency range of 15Hz to 1200Hz allows both fixed 400Hz and wild frequency testing from 360Hz to 800Hz with excellent harmonic support. With LIST, PULSE, and STEP Mode transient functions, users can achieve precise control directly via the intuitive front panel or through the integrated web server interface.
Equipped with a large full-color LCD and spreadsheet-style entry system, the 315LSX simplifies the creation of voltage, waveform, and frequency transients. It offers complete control of voltage, current, frequency, power, slew rates, and phase angles, making it highly effective for compliance testing, transformer evaluation, UPS testing, DC charger analysis, and appliance verification.
Testwall can supply the used Pacific Power 315LSX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Pacific Power 315LSX.
