Pacific Power 320LMX
| Attribute | Value |
|---|---|
| Output Voltage Range | 0–320 VAC |
| Frequency Range | 45–500 Hz |
| Output Power | 1000 VA / 1000 W |
| Number of Phases | Single Phase |
| Total Harmonic Distortion (THD) | Less than 0.5% at full linear load |
| Input Voltage | 105–125 VAC, Single Phase |
| Output Voltage Regulation | ±0.1% of full scale |
| Frequency Accuracy | ±0.01% of set frequency |
| Output Waveform | True sine wave synthesized |
| Programming Interface | IEEE-488 (GPIB) and RS-232 |
Pacific Power 320LMX Options:
- 320LMX - T=1.5:1 - Optional Step-Up Transformer, 1.5:1 Ratio (320LMXT)
- 320LMX - T=2.0:1 - Optional Step-Up Transformer, 2.0:1 Ratio (320LMXT)
- 320LMX - T=2.5:1 - Optional Step-Up Transformer, 2.5:1 Ratio (320LMXT)
- 320LMX - VIN:208 - 208 Vac 3-Phase Delta Input Voltage
- 320LMX - VIN:220 - 220 Vac 3-Phase Delta Input Voltage
- 320LMX - VIN:240 - 240 Vac 3-Phase Delta Input Voltage
- 320LMX - VIN:380 - 380 Vac 3-Phase Delta Input Voltage
- 320LMX - VIN:416 - 416 Vac 3-Phase Delta Input Voltage
- 320LMX - VIN:480 - 480 Vac 3-Phase Delta Input Voltage (Optional)
- 320LMX - PPSC-SW - PPSC Test Manager Software License
- 320LMX - AVI-IEC - Avionics or IEC Test Sequences
- 320LMX - E - Export Version (for units intended for export outside of the USA)
| Model | 320LMX |
|---|

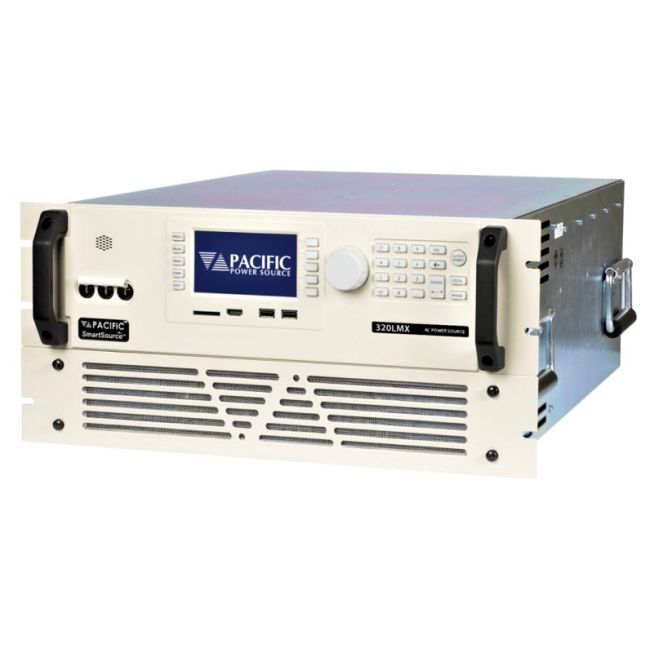

The Pacific Power 320LMX is a medium three-phase member of the LMX-Series Linear AC Power Sources, designed for exceptional waveform fidelity, low voltage distortion, and stable AC output. With a quartz-crystal stabilized frequency range from 15 to 5,000 Hz, it ensures precise performance across demanding applications. The unit delivers up to 135VL-N in single-phase and up to 270VL-L in split-phase mode, with advanced micro-controller integration for comprehensive control and monitoring.
Engineered for flexibility, the 320LMX supports tasks from frequency conversion to harmonic testing and programmable transient simulations. Its robust metering and analysis capabilities make it suitable for laboratory, industrial, and research applications.
Testwall can supply the used Pacific Power 320LMX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Pacific Power 320LMX.
