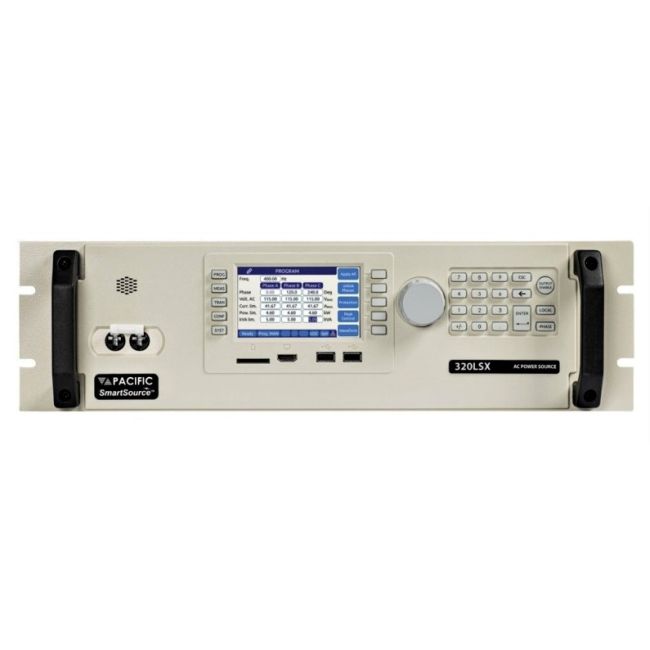

Pacific Power 320LSX
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300V AC (single phase), programmable |
| Output Frequency Range | 45 Hz to 5,000 Hz |
| Output Power Rating | 3.2 kVA continuous |
| Output Current | Up to 13.3A RMS at 240V |
| Input Voltage | 105–125V AC or 210–250V AC, single phase |
| Waveform | True sine wave output |
| Total Harmonic Distortion (THD) | Less than 0.5% THD at full resistive load |
| Regulation | ±0.1% voltage regulation from no load to full load |
| Control Interface | Front panel digital display with programmable controls and remote interface capability |
| Cooling Method | Forced air cooling with internal fan |
Pacific Power 320LSX Options:
- 320LSX - T - Transformer Option (Direct/Transformer Coupled Selectable Output, 45 Hz - 1200 Hz)
- 320LSX - C - Interharmonics Generator Option
- 320LSX - E - Export Version
- 320LSX - LSXM - Reduced Feature Set Economy Version (sine wave only, no transient programming, no harmonic measurements, no waveform capture, no programmable output impedance)
- 320LSX - PPSC Studio - PPSC Studio Control Software (Windows 10, 64-bit)
- 320LSX - PPSC Test Manager - PPSC Test Manager Software (Windows 10, 64-bit)
- 320LSX - ABD0100.1.8 - Test Sequence: Airbus A380, AC Power Groups
- 320LSX - ABD0100.1.8.1 - Test Sequence: Airbus A350, AC Power Groups
- 320LSX - AMD24C - Test Sequence: Airbus A400M, AC Power Groups
- 320LSX - Boeing 787B3-0147 - Test Sequence: B787, AC Power Groups
- 320LSX - MIL-STD704 - Test Sequence: US DoD, AC Power Groups
- 320LSX - RTCA-DO160 Section 16 - Test Sequence: AC Power Groups
- 320LSX - IEC Test Suite - Test Sequences: IEC61000-4-11p, IEC61000-4-14, IEC61000-4-27p, IEC61000-4-28 and IEC61000-4-34p
- 320LSX - MIL-STD 1399-300B - Test Sequence: US DoD, Shipboard Power, AC Power Groups
- 320LSX - M99222 - External Transformer Option for 320LSX model
| Model | 320LSX |
|---|
The Pacific Power 320LSX Power Source delivers low noise, low distortion analog power conversion for superior voltage quality and peak current capability. With a frequency range from 15Hz to 1200Hz, it supports 400Hz fixed and 360Hz–800Hz wild frequency testing. LIST, PULSE, and STEP Mode transients can be easily selected via the front panel or web server interface.
Equipped with a large color LCD and intuitive spreadsheet-style data entry, the 320LSX simplifies creating voltage, waveform, and frequency transients. It provides precise control of voltage, current, frequency, slew rates, and phase angles, making it ideal for AC power compliance, transformer, appliance, charger, and UPS testing.
Testwall can supply the used Pacific Power 320LSX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Pacific Power 320LSX.
