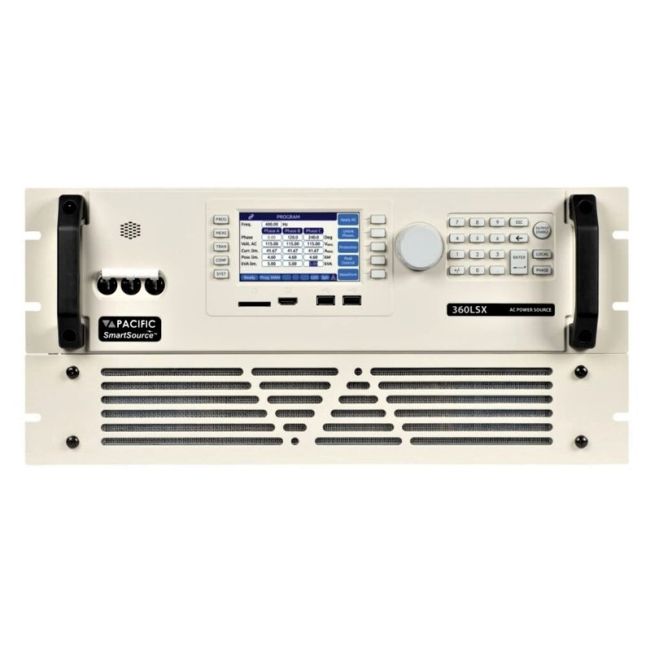

Pacific Power 360LSX
| Attribute | Value |
|---|---|
| Output Power | 360 VA |
| Output Voltage Range | 0–300 VAC |
| Output Frequency Range | 45–500 Hz |
| Number of Output Phases | Single Phase |
| Input Voltage | 120 VAC |
| Input Frequency | 50/60 Hz |
| Waveform | True Sine Wave |
| Total Harmonic Distortion (THD) | Less than 0.5% at full linear load |
| Output Voltage Regulation | ±0.1% from no load to full load |
| Control Interface | Front panel controls with digital display for voltage, frequency, and power metering |
Pacific Power 360LSX Options:
- 360LSX - T - Transformer Option (Direct/Transformer Coupled Selectable Output, 45 Hz - 1200 Hz)
- 360LSX - C - Interharmonics Generator Option
- 360LSX - E - Export Version
- 360LSX - PPSC Studio Control Software - Windows 10 64-Bit PPSC Studio Control Software
- 360LSX - PPSC Test Manager - Windows 10 64-Bit PPSC Test Manager Software
- 360LSX - ABD0100.1.8 - Test Sequence: Airbus A380, AC Power Groups
- 360LSX - ABD0100.1.8.1 - Test Sequence: Airbus A350, AC Power Groups
- 360LSX - AMD24C - Test Sequence: Airbus A400M, AC Power Groups
- 360LSX - Boeing 787B3-0147 - Test Sequence: B787, AC Power Groups
- 360LSX - MIL-STD704 - Test Sequence: US DoD, AC Power Groups
- 360LSX - RTCA-DO160 Section 16 - Test Sequence: AC Power Groups
- 360LSX - IEC Test Suite - Test Sequences: IEC61000-4-11p, IEC61000-4-14, IEC61000-4-27p, IEC61000-4-28 and IEC61000-4-34p
- 360LSX - MIL-STD 1399-300B - Test Sequence: US DoD, Shipboard Power, AC Power Groups
| Model | 360LSX |
|---|
The Pacific Power 360LSX Power Source uses advanced low-noise and low-distortion analog power conversion technology, ensuring superior voltage quality and high peak current capability. It supports a frequency range of 15Hz to 1200Hz, covering both 400Hz fixed frequency and 360Hz to 800Hz wild frequency development with strong harmonics performance. Transient modes include LIST, PULSE, and STEP, easily selectable via front panel or web server interface.
Equipped with a large full-color LCD display and intuitive menus, the 360LSX simplifies operation. Users can quickly generate Voltage, Waveform, and Frequency transients with spreadsheet-style input, enabling versatile AC power test applications with minimal setup.
Testwall can supply the used Pacific Power 360LSX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Pacific Power 360LSX.
