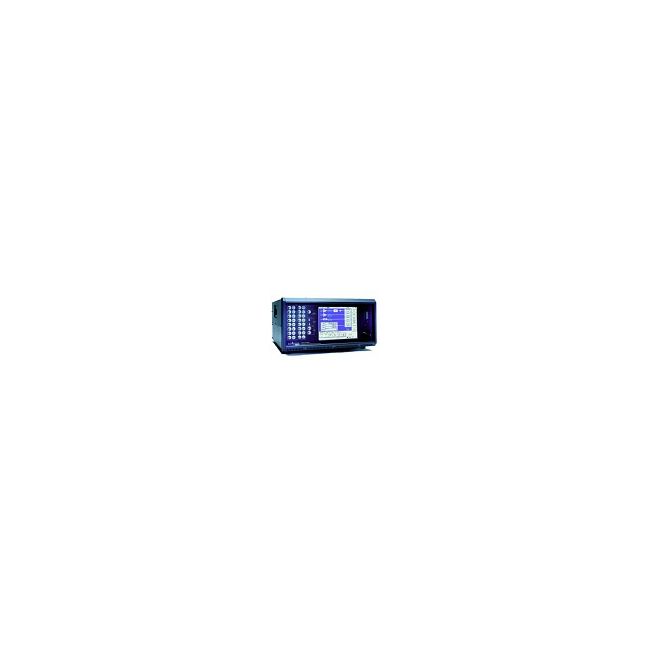

Pendulum BA14400B
16Gbps Bit Error Rate Tester
1 Hz – 400 MHz Frequency Range
0.001 Hz Frequency Resolution
±1 ppm Timebase Accuracy
1 MΩ / 50 Ω selectable Input Impedance
100 mV – 40 V (1 MΩ), 100 mV – 5 V (50 Ω) Input Voltage Range
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz – 400 MHz |
| Frequency Resolution | 0.001 Hz |
| Timebase Accuracy | ±1 ppm |
| Input Impedance | 1 MΩ / 50 Ω selectable |
| Input Voltage Range | 100 mV – 40 V (1 MΩ), 100 mV – 5 V (50 Ω) |
| Measurement Functions | Frequency, Period, Pulse Width, Duty Cycle, Rise/Fall Time |
| Display | 8-digit LCD display |
| Gate Time | 1 ms – 10 s |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 0°C – 50°C |
| Model | BA14400B |
|---|
The SyntheSys Research BA14400B is a 16.00 Gbps Bit Error Rate Tester
