Pendulum

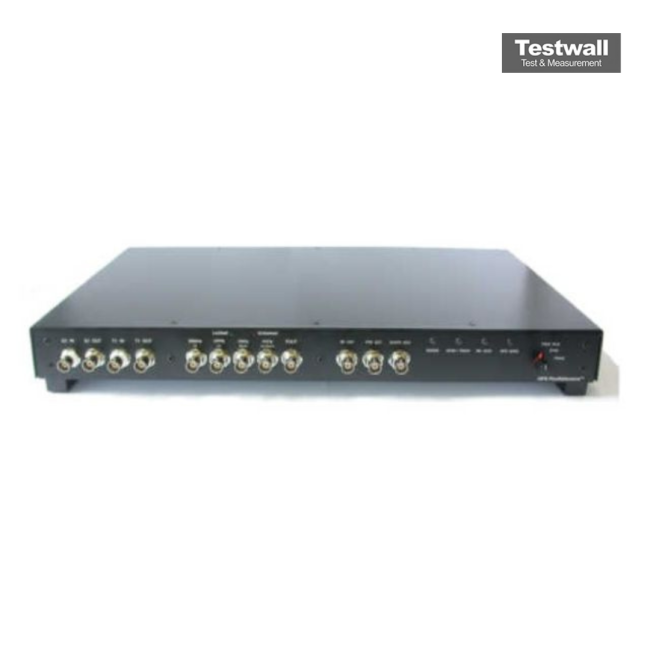

Pendulum GPS PicoReference Pico Second Resolution Test Set
Picosecond (ps) resolution Time Resolution
GPS-disciplined frequency and time reference Reference Signal
10 MHz sine wave output Frequency Output
1 pulse-per-second (1PPS) timing output synchronized to GPS 1PPS Output
Integrated GPS receiver for satellite signal acquisition and timing lock GPS Receiver
| Attribute | Value |
|---|---|
| Time Resolution | Picosecond (ps) resolution |
| Reference Signal | GPS-disciplined frequency and time reference |
| Frequency Output | 10 MHz sine wave output |
| 1PPS Output | 1 pulse-per-second (1PPS) timing output synchronized to GPS |
| GPS Receiver | Integrated GPS receiver for satellite signal acquisition and timing lock |
| Accuracy | GPS-traceable accuracy to UTC (Coordinated Universal Time) |
| Time Interval Measurement | Picosecond-level time interval measurement capability |
| Antenna Interface | External GPS antenna connector (typically SMA or BNC) |
| Operating Temperature | 0°C to +50°C |
| Interface/Connectivity | GPIB / RS-232 remote control interface |
Pendulum GPS PicoReference Pico Second Resolution Test Set Options:
- GPS - 8RF - 8x 10 MHz outputs instead of 4x 10 MHz plus 4x 1-pps
- GPS - S - Improved short term stability (Rubidium oscillator)
- GPS - E - Rackmount ears
- GPS - RA - Rooftop GPS Antenna incl 20 m downlead and lightning arrestor
- GPS - ST32 - Stable32 postprocessing and analysis SW
- GPS - ExtW-3 - Extended Warranty to 3 years
- GPS - ExtW-5 - Extended warranty to 5 years
| Model | GPS |
|---|
- Rubidium frequency reference
- GPS disciplined
- PicoSecond resolution
- Clock characterization such as quartz crystal oscillator, Rubidium atomic clocks and cesium clocks
- Complete calibration test set
