Keysight (Agilent)

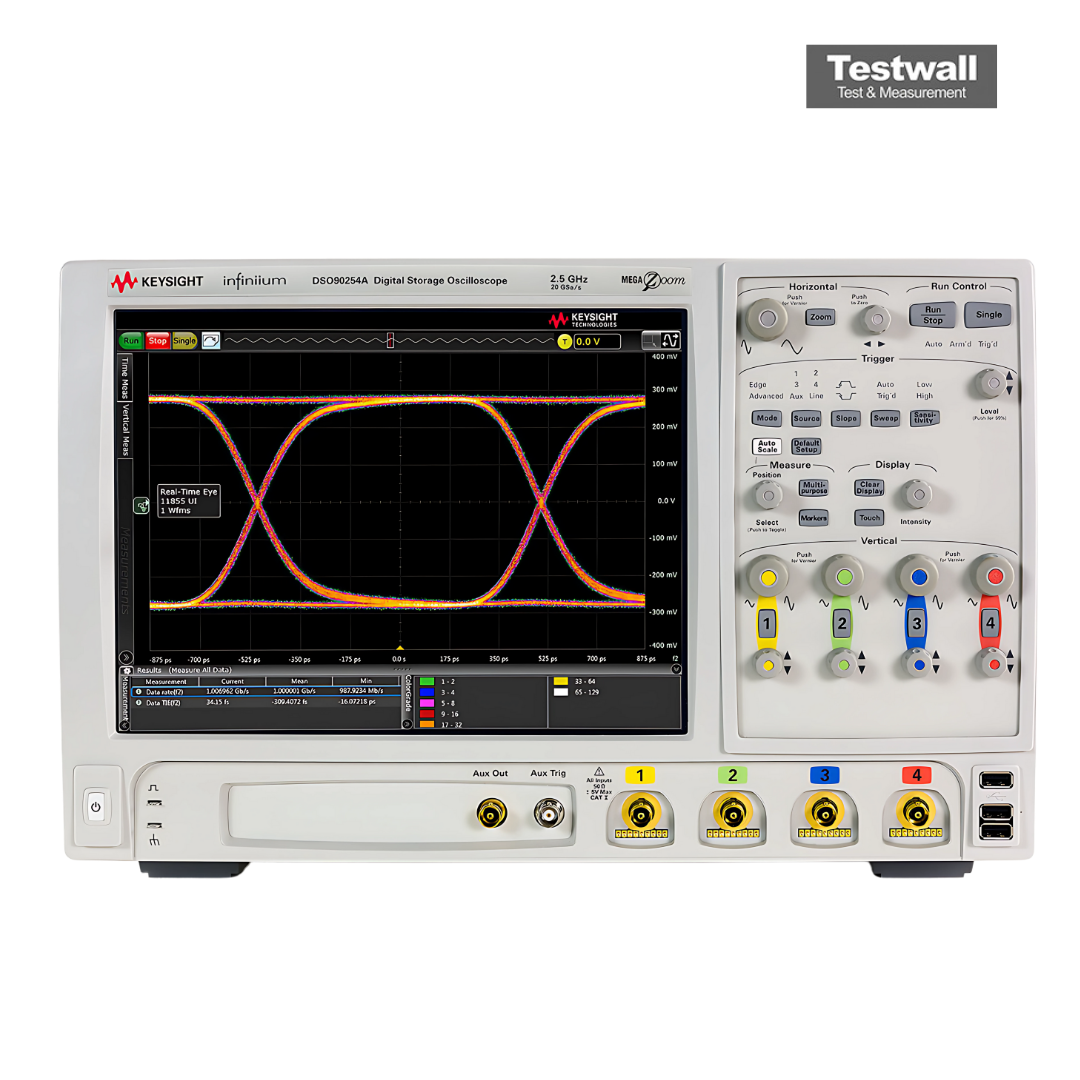

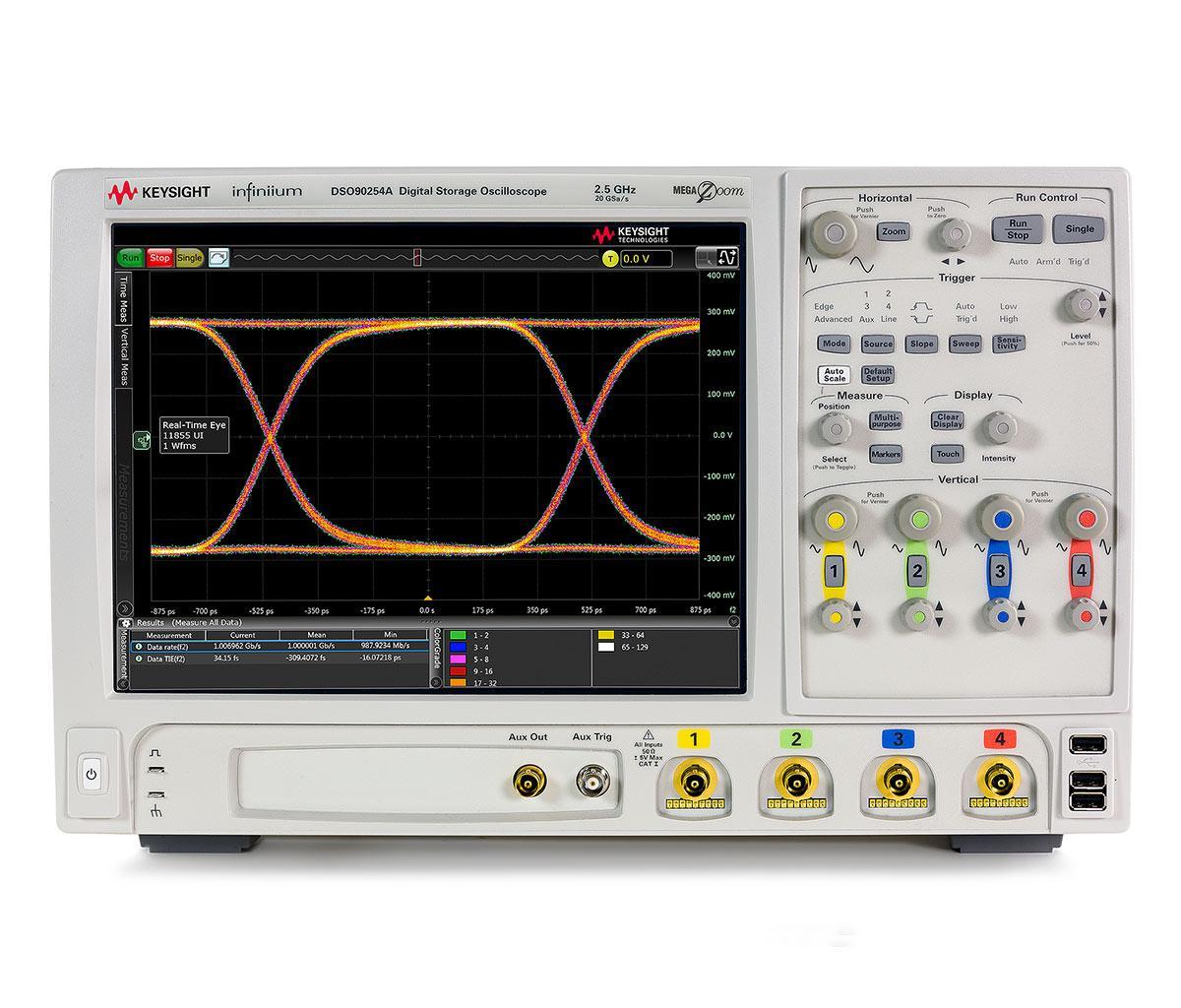

Keysight Technologies DSO90254A
4 Ch 2.5 GHz Infiniium Oscilloscope
2,5 GHz Pasmo przenoszenia
4 Liczba kanałów
20 GSa/s (w trybie z przeplotem 40 GSa/s) Częstotliwość próbkowania
Do 2 Gpkt na kanał Głębokość pamięci
8 bitów Rozdzielczość pionowa
| Atrybut | Wartość |
|---|---|
| Pasmo przenoszenia | 2,5 GHz |
| Liczba kanałów | 4 |
| Częstotliwość próbkowania | 20 GSa/s (w trybie z przeplotem 40 GSa/s) |
| Głębokość pamięci | Do 2 Gpkt na kanał |
| Rozdzielczość pionowa | 8 bitów |
| Zakres wejściowy | 1 mV/dz – 1 V/dz |
| Impedancja wejściowa | 50 Ω / 1 MΩ |
| Podstawa czasu | 20 ps/dz – 20 s/dz |
| Wyświetlacz | 15-calowy ekran dotykowy XGA |
| Interfejsy komunikacyjne | LAN (LXI), USB, GPIB |
Keysight Technologies DSO90254A Options:
- DSO90254A - 801 - 80 GBytes or greater hard disk drive (replaces internal hard disk drive with a removable hard disk drive)
- DSO90254A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSO90254A - 805 - GPIB card
- DSO90254A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSO90254A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSO90254A - 1CM - Rackmount Kit
- DSO90254A - A6J - ANSI Z540 compliant calibration
- DSO90254A - 1A7 - ISO17025 compliant calibration
- DSO90254A - 002 - EZJIT Jitter Analysis Software
- DSO90254A - 003 - High Speed Serial Data Analysis Software
- DSO90254A - 004 - EZJIT Plus Jitter Analysis Software
- DSO90254A - 005 - Noise Reduction and Bandwidth Control
- DSO90254A - 006 - My Infiniium Integration Package
- DSO90254A - 007 - I2C and SPI Low-speed Data Analysis
- DSO90254A - 008 - CAN Serial Data Analysis Software
- DSO90254A - 009 - InfiniiScan Event Identification Software
- DSO90254A - 010 - Infiniium User Defined Function Software
- DSO90254A - 011 - Infiniium Application Remote Program Interface Software
- DSO90254A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSO90254A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSO90254A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSO90254A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSO90254A - 025 - Fibre Channel Validation and Compliance Software
- DSO90254A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSO90254A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSO90254A - 028 - DisplayPort Validation and Compliance Software
- DSO90254A - 029 - USB 2.0 Validation and Compliance Software
- DSO90254A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSO90254A - 031 - DDR1 Validation and Compliance Software
- DSO90254A - 032 - DDR2 Validation and Compliance Software
- DSO90254A - 033 - DDR3 Validation and Compliance Software
- DSO90254A - 20M - Acquisition memory upgrade 10 MPts to 20 MPts
- DSO90254A - 50M - Acquisition memory upgrade 20 MPts to 50 MPts
- DSO90254A - 100 - Acquisition memory upgrade 50 MPts to 100 MPts
- DSO90254A - 200 - Acquisition memory upgrade 100 MPts to 200 MPts
- DSO90254A - 500 - Acquisition memory upgrade 200 MPts to 500 MPts
- DSO90254A - 01G - Acquisition memory upgrade 500 MPts to 1 GPts
| Model | DSO90254A |
|---|
The Keysight (Agilent) DSO90254A delivers 2.5 GHz bandwidth and 20 GSa/s on all 4 channels, with standard 10 Mpts memory expandable to 1 Gpts.
Industry-leading noise performance, jitter analysis to 8.5 Gb/s, compliance suites for major serial standards, and hardware de-embedding support.
Testwall dostarcza the used Keysight (Agilent) DSO90254A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Skontaktuj się z nami directly if you need calibration or repair of the Keysight (Agilent) DSO90254A.
