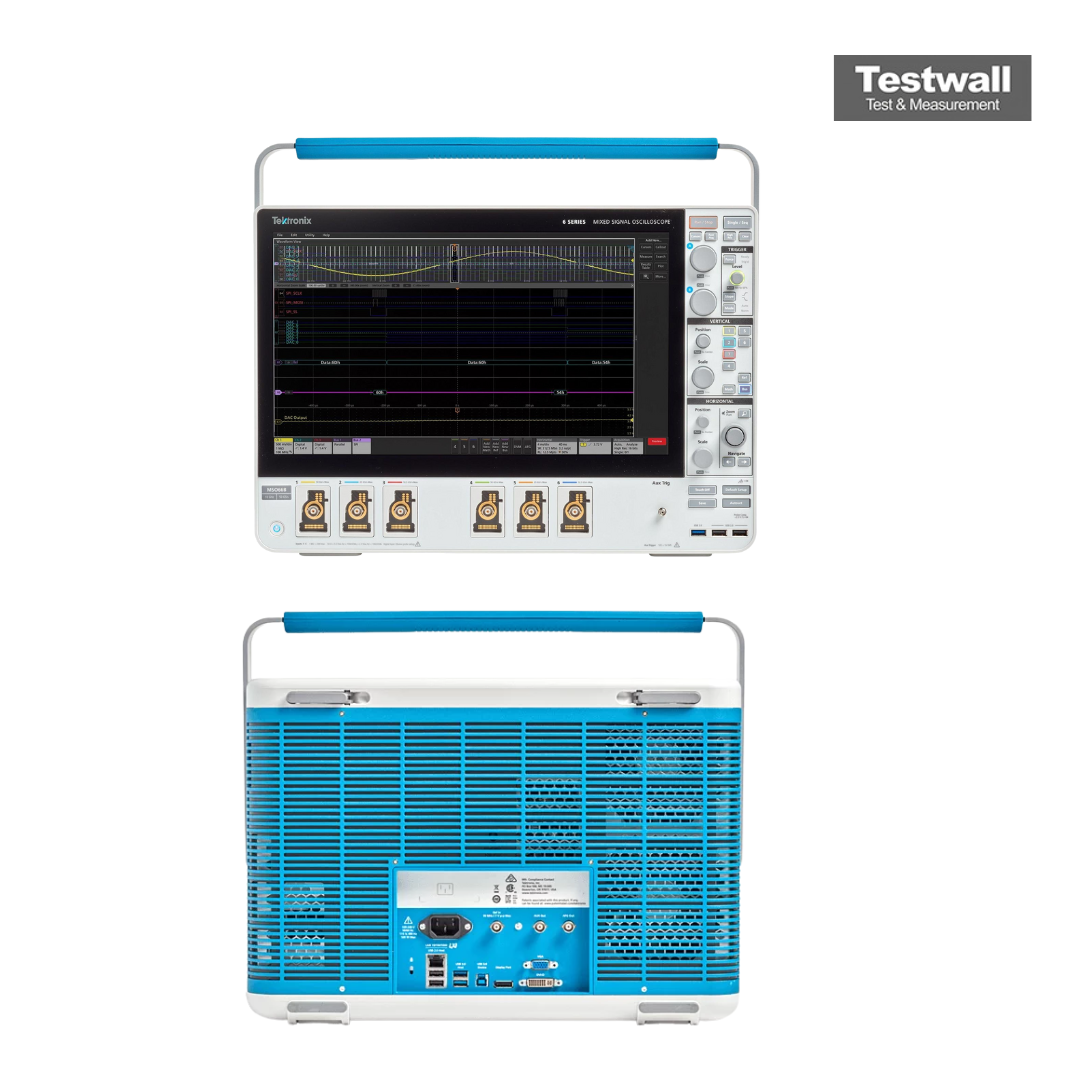

Tektronix MSO66B 6-BW-8000
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz (option 6-BW-8000) |
| Number of Analog Channels | 6 FlexChannel inputs |
| Digital Channels | Up to 48 (with TLP058 FlexChannel logic probes) |
| Sample Rate | Up to 50 GS/s (50 GS/s on 2 channels, 25 GS/s on 4 channels, 12.5 GS/s on more than 4 channels) |
| Record Length | 62.5 M points standard (up to 1 G optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | > 500,000 waveforms per second |
| Series | Tektronix 6 Series B MSO |
The Tektronix MSO66B 6-BW-8000 is the 8 GHz bandwidth configuration of the MSO66B, a 6-channel 6 Series B MSO. It samples at up to 50 GS/s (25 GS/s with four channels active) with a 12-bit ADC (up to 16-bit in High Res mode), and offers 62.5 M points record length as standard. The 6 Series B MSO is the updated 6 Series with bandwidth up to 10 GHz, very low noise, up to 50 GS/s sampling and FlexChannel inputs.
Bandwidth on the 6 Series B MSO is set by software option, so the MSO66B can be ordered at 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz, 10 GHz. This listing is for the 8 GHz unit (option 6-BW-8000). If you need a different bandwidth, see the MSO66B overview page for all configurations.
Testwall can supply the used Tektronix MSO66B 6-BW-8000, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO66B.
