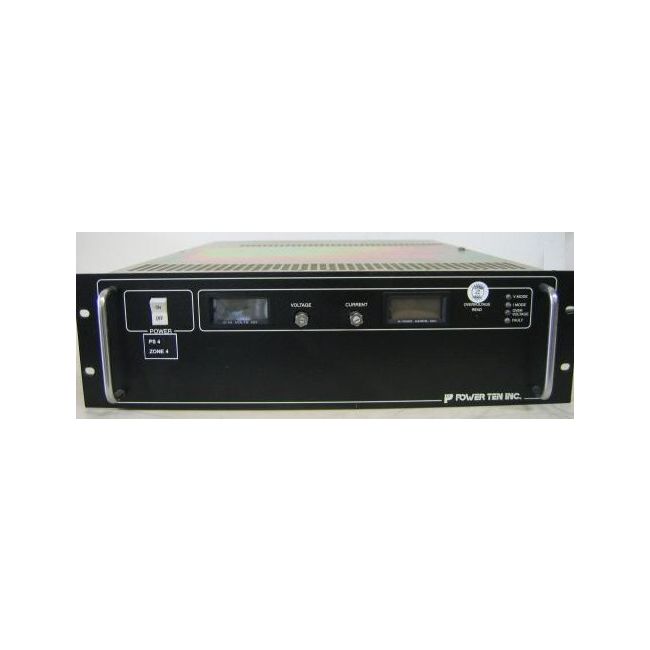

Power Ten P63C-10660D

POWER TEN P63C-10660D

 Power Ten supplies, including the Power Ten P63C-10660D (P63C series) are a strong choice for semiconductor burn-in systems worldwide and are providing solutions to high power DC voltage requirements in many other diverse applications. These include:

• Process Control
• Medical Systems
• Production Test
• Electromagnets
• ATE
• Battery Chargers
• Ion Implant
• Radar Systems
•  High Power Lasers
• Research / Labs

All power supply designs from Power Ten employ the most reliable, efficient and cost-effective switching technology, including pulse width modulation (PWM) and zero crossing topology to achieve both high efficiency and high-density packaging. Highlights include: 3-Phase Input Power, Low Peak-to-Peak Ripple & Noise, CE & TUV, Optional IEEE 488.2 and RS 232 Remote Programming with SCPI Protocol

Other features and specifications of the Power Ten P63C-10660D include:

• Output: 10V, 660A, 50mV Ouput P-P Ripple
• Input Voltage: 190-253 VAC, 47-63 Hz
• Input Cur @ 208 VAC (Typical): At 10.0 kW Output: 41 A (Operates from Delta or Wye Source)
• Dimensions: 19" (W) X 5.25"  (H) X 22"  (D)
• AC Input Interface: 3 wire + GND (#10-32 threaded studs) (208 VAC)
• DC Output Interface
• Control/Monitor Interface: DB 25-pin female connector
• Regulation (Line or Load) Voltage: 0.1% of maximum rated output
• Current: 0.5% of maximum rated output
• Transient Response
• A 30% cur step load will recover to within ±2% of set voltage within 10 msec.
• Stability
• Â ±0.05% of set point per 8 hours after 30 minutes warm-up at fixed line, load and temperature.
• Temperature Coefficient
• 0.02%/ °C of rated output voltage
• 0.03%/ °C of rated output current
• Operating Temperature
• 0 to +50Â ° C, No derating
• Storage Temperature
• -20 to +70Â °C
• Cooling
• Internal fans
• Controls (Front Panel)
• On/Off switch, DC volts adjust, DC amps adjust, OVP preset adjust (limit set)
• Meters/Indicators
• LCD DC voltmeter, ammeter and OVP limit set. LED indicators for voltage mode, cur mode. OVP fault and fault
• Built-In Protection
• Over Voltage, Cur limit Fold back, Over Temperature, Brown Out, Turn On Surge Limit, Slow Start
•  Remote Control/Monitor (Rear Panel)
• On/Off control via contact closure, 6-120 VDC, TTL or CMOS switch, output voltage and cur monitor, OVP limit set, summary fault status on P60 Series.
• Remote Programming (Voltage (0 to 100%) Cur (0 to 100%)):
• Resistive: 0-5K ohms 0-5K ohms
• Voltage: 0-5 VDC or 10 VDC 0-5 VDC or 10 VDC
• Optional IEEE 488.2 and RS 232 Programming with SCPI protocol
•  Remote Sensing:
• Terminals provided to sense output voltage at load
• Operational Features:
• Master/Slave, Series, Parallel
