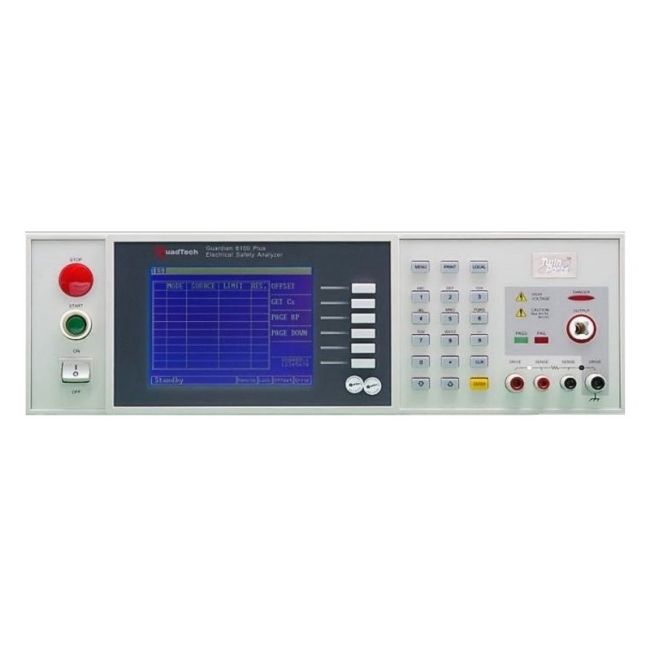

Quadtech GUARDIAN 6100 PLUS
| Attribute | Value |
|---|---|
| Test Voltage Range | 10V to 6000V AC/DC |
| Insulation Resistance Range | Up to 50 GΩ |
| AC Hipot Test Frequency | 50/60 Hz |
| Current Measurement Range | 0.001 mA to 30 mA |
| Test Functions | AC Hipot, DC Hipot, Insulation Resistance, Ground Bond |
| Ground Bond Test Current | Up to 30A AC |
| Memory Storage | Up to 100 test programs |
| Interface | RS-232, Handler I/O, USB |
| Display | Color LCD Touchscreen |
| Power Requirements | 100-240V AC, 50/60 Hz |
Quadtech GUARDIAN 6100 PLUS Options:
- GUARDIAN 6100 PLUS - 5000-01 - External Scanner, 8 Channel: 8HV
- GUARDIAN 6100 PLUS - 5000-02 - External Scanner, 8 Channel: 8HV, 4GB
- GUARDIAN 6100 PLUS - 5000-03 - External Scanner, 8 Channel: 8HV
- GUARDIAN 6100 PLUS - 5000-04 - External Scanner, 8 Channel: 8HV, 3GB
- GUARDIAN 6100 PLUS - S04 - HV Lead Set 2m
- GUARDIAN 6100 PLUS - S05 - Foot Switch
- GUARDIAN 6100 PLUS - S08 - Gun Probe
- GUARDIAN 6100 PLUS - S09 - HV Lead, 1m, Unterminated
- GUARDIAN 6100 PLUS - S10 - HV Lead, 1m, Unterminated
- GUARDIAN 6100 PLUS - G13 - Corded Product Adapter (115V)
- GUARDIAN 6100 PLUS - G14 - Power Entry Adapter
- GUARDIAN 6100 PLUS - G16 - International Power Strip
- GUARDIAN 6100 PLUS - G24 - Scanner Cable (5000 scanners)
- GUARDIAN 6100 PLUS - G25 - Corded Product Adapter (240V)
- GUARDIAN 6100 PLUS - G31 - Isolation Transformer, 500VA
- GUARDIAN 6100 PLUS - G32 - Isolation Transformer, 1000VA
- GUARDIAN 6100 PLUS - G38 - Printer Interface (replaces IEEE)
- GUARDIAN 6100 PLUS - G39 - IEEE-488 Interface
- GUARDIAN 6100 PLUS - G43 - Rack Mount Kit
- GUARDIAN 6100 PLUS - G44 - Barcode Scanner
- GUARDIAN 6100 PLUS - G45 - 40A Ground Bond Transformer
- GUARDIAN 6100 PLUS - 630157 - RS232, 9-pin (M-F), 10' length
| Model | GUARDIAN 6100 PLUS |
|---|
The QuadTech Guardian-6100-Plus offers advanced electrical safety testing with functions such as hipot, insulation resistance, ground bond, and leakage current measurement. Its rugged design, automation integration, and high-output capacity ensure long-term performance for demanding applications.
With programmable test sequences, data logging, and built-in operator safety features, this unit is ideal for medical, industrial, and consumer electronics compliance testing. It adapts seamlessly to automated systems for reliable workflows.
Testwall can supply the used QuadTech Guardian-6100-Plus, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the QuadTech Guardian-6100-Plus.
