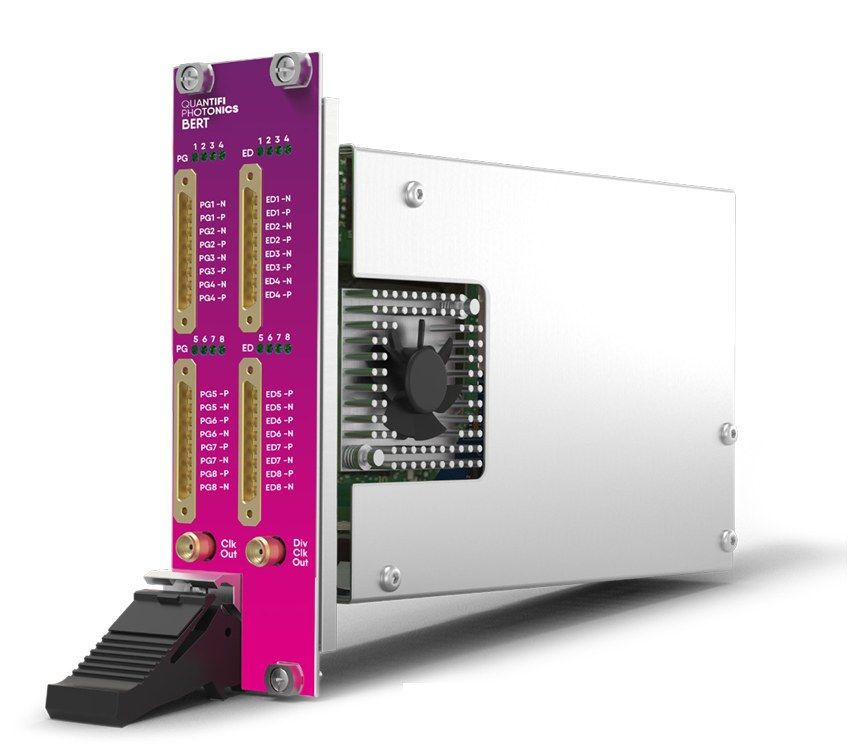

Quantifi Photonics BERT-1102-8-PXIE
| Attribute | Value |
|---|---|
| Channels | 8 PPG + 8 ED (4-channel version available) |
| Modulation | NRZ and PAM4 |
| Symbol Rate | NRZ 1.25 to 28.125 GBaud; PAM4 15 to 28.125 GBaud (30 to 56.25 Gb/s) |
| PPG Output Amplitude | 600 to 1000 mV differential, 100 mV steps |
| PPG De-emphasis | 7-tap, programmable pre/post-cursor |
| ED Max Input | 1200 mVp-p differential |
| ED Equalisation | CTLE 0 to 12 dB; FFE 3 pre + 6 post taps; 1-tap PAM4 DFE |
| Patterns | PRBS7/9/11/13/15/23/31/58 and Q variants, SSPRQ, JP03B |
| Connectors | 1x8 mini-coax front panel, breakout to 2.92 mm |
| Form Factor | 2-slot PXIe, 130 x 40 x 215 mm, approx. 1 kg |
Quantifi Photonics BERT-1102-8-PXIE Options:
- BERT-1102-4-PXIE - 4-channel PXIe version
- BERT-1102-8-PXIE - 8-channel PXIe version
- BERT-1102-4-MTRQ - 4-channel MATRIQ benchtop version
- BERT-1102-8-MTRQ - 8-channel MATRIQ benchtop version
- BERT-9007-1 - Breakout cable, 30 cm, 1x8 to 2.92 mm male
- BERT-9008-1 - Breakout cable, 60 cm, 1x8 to 2.92 mm male
The BERT-1102 is a 4- or 8-channel pulse pattern generator and error detector for designing, characterising and testing optical transceivers and opto-electrical components, supporting NRZ and PAM4 for systems up to 400 Gb/s. The -PXIE version is a 2-slot PXIe module; each error detector channel has its own CDR and the PPG has an internal clock synthesiser, so no external clock source or clock recovery is needed.
Available as 4 or 8 channels in PXIe (-PXIE) or MATRIQ benchtop (-MTRQ, USB/Ethernet) form; PPG has 7-tap de-emphasis and the receiver has adjustable CTLE and FFE. Up to 64 synchronised channels can be fitted in one PXIe chassis.
Testwall can supply the used Quantifi Photonics BERT-1102-8-PXIE, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Quantifi Photonics BERT-1102-8-PXIE.
