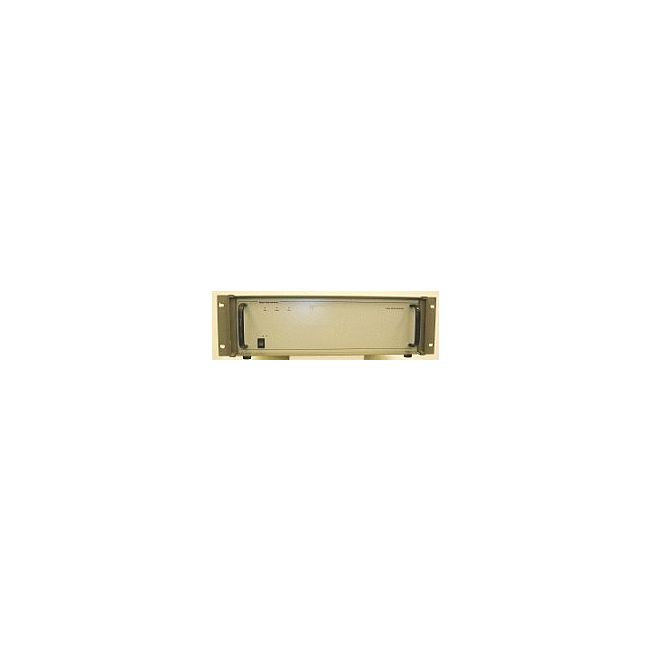

Racal 1255A
1 Hz to 1.2 MHz Frequency Range
1 mΩ to 10 MΩ Impedance Measurement Range
Impedance (Z), Resistance (R), Reactance (X), Capacitance (C), Inductance (L), Quality Factor (Q), Dissipation Factor (D), Phase Angle (θ) Measurement Functions
0.1% Basic Accuracy
5 mV to 1 V RMS (adjustable) Test Signal Level
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 1.2 MHz |
| Impedance Measurement Range | 1 mΩ to 10 MΩ |
| Measurement Functions | Impedance (Z), Resistance (R), Reactance (X), Capacitance (C), Inductance (L), Quality Factor (Q), Dissipation Factor (D), Phase Angle (θ) |
| Basic Accuracy | 0.1% |
| Test Signal Level | 5 mV to 1 V RMS (adjustable) |
| Display Type | Dual digital display with simultaneous parameter readout |
| Interface | IEEE-488 (GPIB) interface for remote control and automation |
| DC Bias | Internal DC bias voltage capability for component testing |
| Power Requirements | 100/120/220/240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Model | 1255A |
|---|
