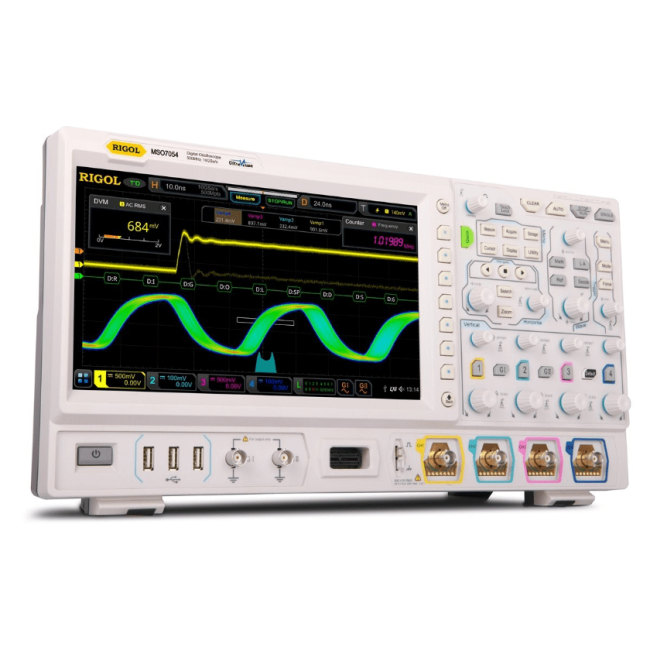

Rigol MSO7054
High quality 4 channel oscilloscope with 500 MHz Bandwidth, 10 GSa/s sample rate, up to 500 Mpts memory depth and a 25.7 cm touchdisplay 1024x600 pixel. Including integrated 16 channel logic analyser. Upgradable to a 2 channel 25 MHz waveform generator.
500 MHz Bandwidth
4 Analog Channels
16 Digital Channels
10 GSa/s (single channel), 5 GSa/s (dual channel), 2 GSa/s (all channels) Sample Rate
500 Mpts (single channel), 250 Mpts (dual channel) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 10 GSa/s (single channel), 5 GSa/s (dual channel), 2 GSa/s (all channels) |
| Memory Depth | 500 Mpts (single channel), 250 Mpts (dual channel) |
| Vertical Resolution | 8-bit (up to 16-bit with high resolution mode) |
| Display | 10.1-inch capacitive touch screen, 1024 x 600 resolution |
| Waveform Capture Rate | Up to 600,000 waveforms per second |
| Input Impedance | 1 MΩ ± 1% || 13 pF ± 2 pF |
| Serial Protocol Decoding | I2C, SPI, UART, CAN, LIN, FlexRay, I2S, and more (standard and optional) |
| Model | MSO7054 |
|---|
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1" display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
