Rohde & Schwarz AMIQ I/Q Modulation Generator, New approaches in the generation of complex I/Q signals
| Attribute | Value |
|---|---|
| Channels | 2 (I and Q) |
| Sample Rate | 10 Hz to 100 MSa/s |
| Amplitude | 0 to 1 V (per channel) |
| Waveforms | arbitrary |
| Rise/Fall Time | 5 ns (typ.) |
| Frequency Range | 25 MHz filter (0.15 dB flatness, typ.) |
| Vertical Resolution | 14 bit |
| Arbitrary Memory | 4 Msample (AMIQ03), 16 Msample (AMIQ04) |
| Timebase Aging | 1 × 10⁻⁵ per year |
| Output Impedance | 50 Ω |
| Output Connector | BNC |
| Interfaces | GPIB, RS-232 |
| Display | without display |
| Dimensions | 427 × 88 × 450 mm |
| Weight | 8.7 kg |
Rohde & Schwarz AMIQ I/Q Modulation Generator, New approaches in the generation of complex I/Q signals Options:
- AMIQ I/Q - AMIQ-B1 - BER Measurement
- AMIQ I/Q - AMIQ-B2 - Differential I/Q Outputs
- AMIQ I/Q - AMIQ-B3 - Digital I/Q Output
- AMIQ I/Q - AMIQB19 - I/Q Rear-Panel Connection
- AMIQ I/Q - AMIQK11 - IS-95 CDMA
- AMIQ I/Q - AMIQK12 - CDMA 2000
- AMIQ I/Q - AMIQK13 - Digital Standard W-CDMA TTD Mode (3GPP)
- AMIQ I/Q - AMIQK14 - Digital Standard TD-SCDMA
- AMIQ I/Q - AMIQK15 - OFDM Signal Generation
- AMIQ I/Q - AMIQK16 - Digital Standard 802.11b Wireless LAN

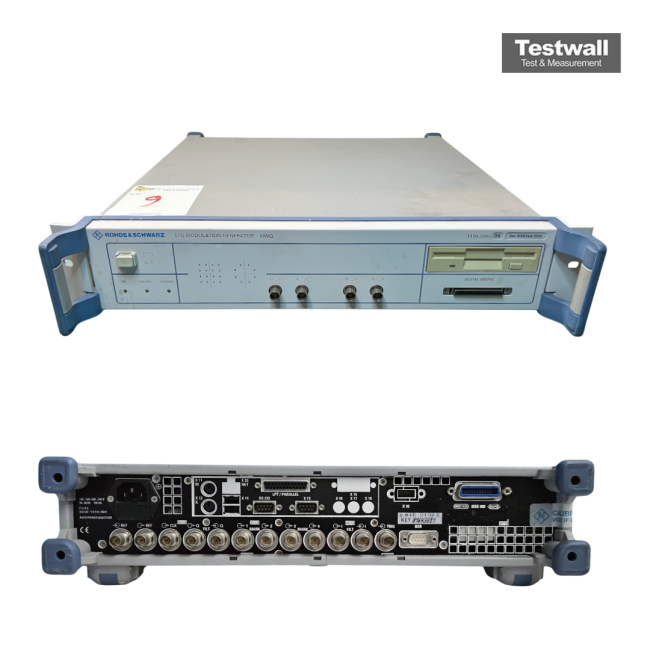

The Rohde and Schwarz AMIQ I/Q Modulation Generator offers a 100 MHz sample rate and 16 MSamples memory depth, providing high flexibility for advanced signal generation. It includes an integrated hard disk and floppy disk drive, ensuring convenient data storage. Designed to work seamlessly with R&S®WinIQSIM™ software, it enables the generation of complex I/Q signals with superior accuracy and control.
Ideal for applications requiring detailed I/Q signal simulation, the AMIQ supports sophisticated testing environments. The built-in storage enhances usability in lab and field conditions.
Testwall can supply the used Rohde and Schwarz AMIQ I/Q Modulation Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz AMIQ I/Q Modulation Generator.
Options and configurations
- Vertical Resolution: 14 bit (16 bit digital output, Opt. B3)
