Rohde & Schwarz CMW100
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Supported Radio Standards | GSM, WCDMA, LTE, WLAN (802.11 a/b/g/n), Bluetooth, GPS/GNSS |
| RF Output Power Range | -130 dBm to +10 dBm |
| RF Input Power Range | -50 dBm to +30 dBm |
| Measurement Bandwidth | Up to 40 MHz |
| Number of RF Connectors | 2 RF ports (1 TX/RX, 1 RX only) |
| Interface Options | USB, LAN (Ethernet), GPIB (optional) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions (W x H x D) | 425 mm x 88 mm x 390 mm (2U rack unit) |
| Operating Temperature Range | 0 °C to +45 °C |
| Model | CMW100 |
|---|

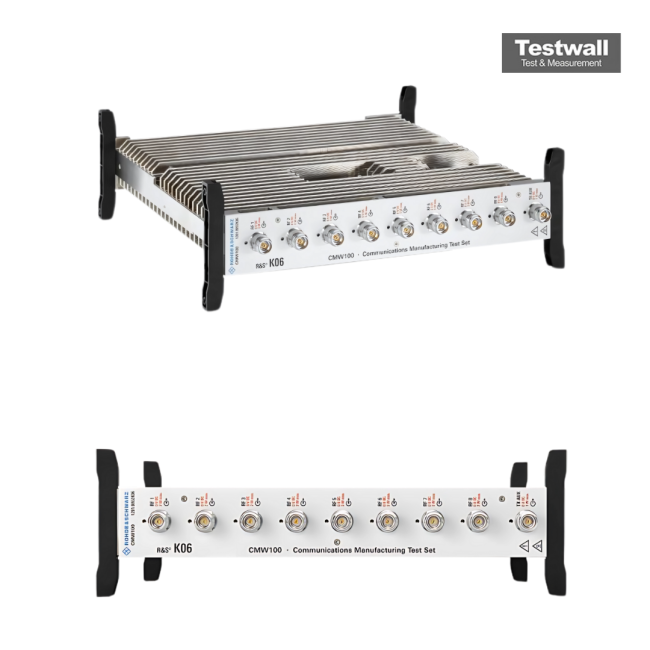

The R&S CMW100 is a 3 GHz communication manufacturing test set supporting FR1 bands including 5G, IoT, LoRa, Bluetooth, GNSS, WiLAN, and cellular technologies. It enables high-precision transmitter and receiver tests with parallel testing capability across up to eight RF ports.
Based on the CMW platform, it features remote control and measurement concepts compatible with the R&S®CMW500. Ideal for cost-effective, non-signaling calibration and verification.
Testwall can supply the used Rohde & Schwarz CMW100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CMW100.
