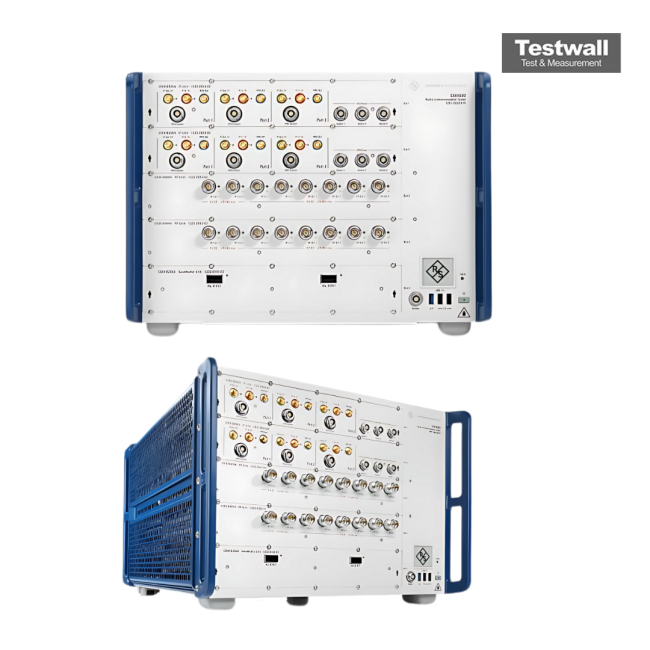

Rohde & Schwarz CMX500
| Attribute | Value |
|---|---|
| Frequency Range | 410 MHz to 6 GHz (with options up to 7.125 GHz for FR1 and FR2 NR) |
| Supported Standards | 5G NR (FR1 and FR2), LTE, LTE-A, LTE-A Pro, WCDMA, GSM, CDMA2000, TD-SCDMA |
| RF Output Power Range | -120 dBm to +28 dBm |
| Maximum Channel Bandwidth | Up to 400 MHz for 5G NR FR1 carrier aggregation |
| Number of RF Ports | Up to 8 RF ports supporting MIMO and carrier aggregation testing |
| Signaling Capability | Supports both signaling and non-signaling test modes for device characterization |
| Modulation Analysis | EVM measurement, spectrum analysis, and adjacent channel leakage ratio (ACLR) testing |
| Protocol Testing | Layer 1, Layer 2, and Layer 3 protocol testing with 3GPP conformance test support |
| Interface Connectivity | LAN (1GbE), USB, GPIB; supports remote control via SCPI commands |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz, with internal DC power simulation for UE testing |
| Model | CMX500 |
|---|
The Rohde & Schwarz CTH100A is a compact, rugged millimeter-wave test interface engineered for precise compatibility with Rohde & Schwarz Vector Network Analyzers (VNAs). It delivers accurate Device Under Test (DUT) coupling, whether over-the-air (OTA) or via waveguide, and is optimized for sub-THz testing when used with ZC converters. Its robust construction ensures mechanical stability and reliable performance even in demanding environments.
This interface is ideal for advanced test setups requiring easy integration and alignment, providing dependable performance across a wide range of high-frequency applications.
Testwall can supply the used Rohde & Schwarz CTH100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CTH100A.
