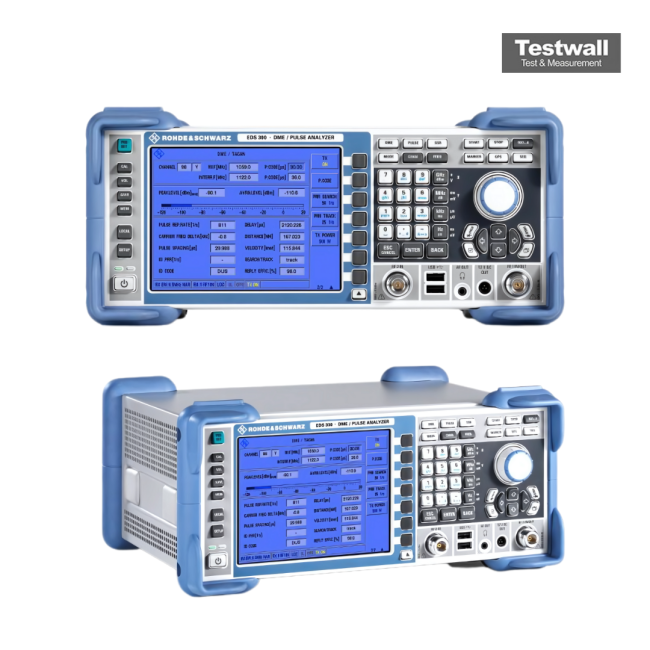

Rohde & Schwarz EDS300
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Sensitivity | Up to -163 dBm/Hz noise figure for high sensitivity detection |
| Dynamic Range | Greater than 100 dB |
| RF Input Impedance | 50 Ohm |
| Display | 10.1-inch color touchscreen display |
| Interfaces | USB, LAN (Ethernet), HDMI |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Operating Temperature | 0 °C to +50 °C |
| Dimensions (W x H x D) | Approximately 395 mm x 197 mm x 275 mm |
| Weight | Approximately 7 kg |
Rohde & Schwarz EDS300 Options:
- EDS300 - EDS-B1 - Additional RX Unit
- EDS300 - EDS-B2 - Low-Power Interrogator
- EDS300 - EDS-B4 - High-Power Interrogator
- EDS300 - EDS-B5 - High-Power Amplifier
- EDS300 - EDS-K1 - TACAN Analysis
- EDS300 - EDS-K2 - Pulse Shape Analysis
- EDS300 - EDS-K3 - GPS Synchronization
- EDS300 - EDS-K5 - Multi-DME Mode
| Model | EDS300 |
|---|
The Rohde and Schwarz EDS300 offers high-precision DME and TACAN system measurements both airborne and ground-based, aligning with ICAO Doc. 8071, Annex 10, STANAG 5034, and MIL-STD-291C. It delivers exceptional performance with < 1 dB total peak level deviation, -97 dBm receiver sensitivity, and 0.01 NM distance accuracy down to -80 dBm. It supports multi-DME analysis within 50 ms and pulse shape diagnostics, synchronized via GPS and remote interfaces.
Ideal for regular verification of pulsed navigation signals, the EDS300 ensures reliable readings on DME and TACAN stations with a dynamic range of 105 dB and accurate bearing deviation at high input levels.
Testwall can supply the used Rohde and Schwarz EDS300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz EDS300.
