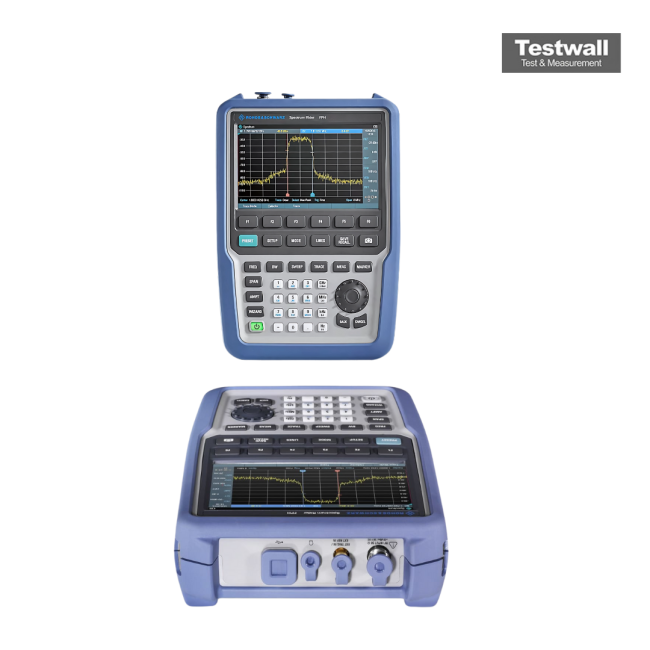

Rohde & Schwarz FPH .13 Model
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Display | 5-inch color touchscreen LCD |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Displayed Average Noise Level (DANL) | -150 dBm (typical, with preamplifier) |
| Dynamic Range | Up to 95 dB |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +20 dBm (continuous) |
| Battery Operating Time | Approximately 4 hours with standard battery pack |
| Dimensions (W x H x D) | 270 mm x 195 mm x 68 mm |
| Weight | Approximately 2.9 kg (including battery) |
Rohde & Schwarz FPH .13 Model Options:
- FPH - B20 - Spectrum analyzer frequency upgrade, 13.6 GHz to 20 GHz
- FPH - B24 - Spectrum analyzer preamplifier, 5 kHz to 20 GHz
- FPH - K7 - Analog modulation analysis AM/FM
- FPH - K9 - Power sensor support
- FPH - K15 - Interference analysis
- FPH - K16 - Signal strength mapping
- FPH - K19 - Channel power meter
- FPH - K29 - Pulse measurements with power sensor
- FPH - K43 - Receiver mode
| Model | FPH |
|---|
The Rohde and Schwarz FPH .13 Model offers spectrum analysis from 13.6 GHz to 20 GHz, supporting field and lab diagnostics with solid RF performance. With a DANL of –163 dBm, TOI of +10 dBm at 2.4 GHz, and robust housing, it ensures precision across wireless, aerospace, radar, and broadcasting industries.
Weighing only 2.5 kg and boasting a 6-hour battery life, it features a large color touchscreen, fast boot time, backlit keypad, and software upgrades via keycode for future-ready use.
Testwall can supply the used Rohde and Schwarz FPH .13 Model, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FPH .13 Model.
