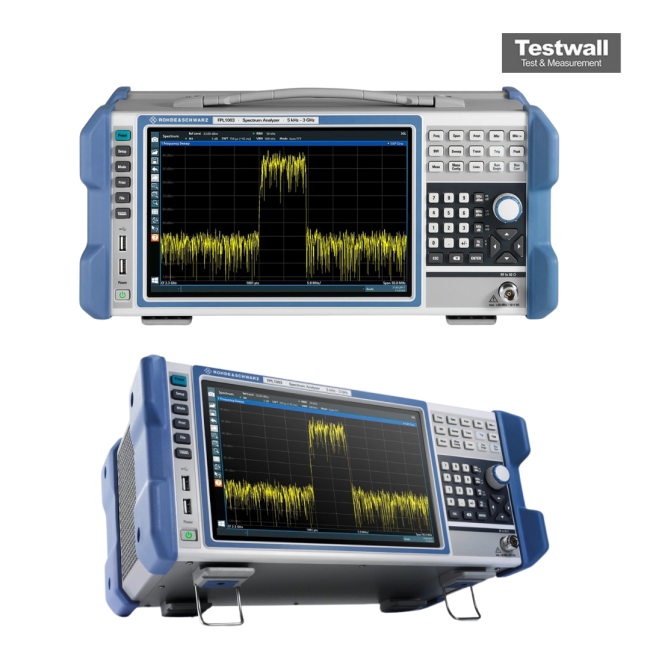

Rohde & Schwarz FPL1003
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 3 GHz |
| Display Noise Level (DANL) | -150 dBm (typ.) at 1 GHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typ.) at 1 GHz carrier |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Third-Order Intercept Point (TOI) | +15 dBm (typ.) at 1 GHz |
| Maximum Input Power | +30 dBm (1 W) continuous |
| Display | 10.1-inch WXGA (1366 x 768) capacitive touchscreen |
| Dimensions (W x H x D) | 13.39 in x 7.56 in x 6.69 in (340 mm x 192 mm x 170 mm) |
| Weight | Approximately 8.82 lbs (4 kg) |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
Rohde & Schwarz FPL1003 Options:
- FPL1003 - FPL1-B4 - OCXO Reference Frequency
- FPL1003 - FPL1-B5 - Additional Interfaces (IF/video/demod out, user port, noise source control, power sensor, AF output, loudspeaker)
- FPL1003 - FPL1-B10 - GPIB Interface
- FPL1003 - FPL1-B19 - Second Hard Disk (SSD), mounted on PC board, including analyzer firmware
- FPL1003 - FPL1-B22 - RF Preamplifier
- FPL1003 - FPL1-B25 - 1 dB Steps for electronic attenuator
- FPL1003 - FPL1-B30 - DC Power Supply 12/24 V
- FPL1003 - FPL1-B31 - Internal Lithium-Ion Battery (including 2 battery packs and internal charging unit)
- FPL1003 - FPL1-B40 - 40 MHz Analysis Bandwidth
- FPL1003 - FPL1-K7 - AM/FM/φM Measurement Demodulator
- FPL1003 - FPL1-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FPL1003 - FPL1-K30 - Noise Figure and Gain Measurements (requires R&S FPL1-B5)
| Model | FPL1003 |
|---|
The Rohde and Schwarz FPL1003 is a compact spectrum analyzer covering a frequency range from 5 kHz to 3 GHz. It features exceptional SSB phase noise of –108 dBc (1 Hz) at 10 kHz offset, and a DANL of –167 dBm with preamplifier between 10 MHz and 2 GHz. It offers options for 40 MHz analysis bandwidth, analog/digital signal analysis, and can operate on battery or DC power, making it highly versatile.
This unit is ideal for field and lab use, thanks to its portability, intuitive interface, and ability to integrate power sensors. It delivers solid RF performance across diverse testing applications.
Testwall can supply the used Rohde and Schwarz FPL1003, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FPL1003.
