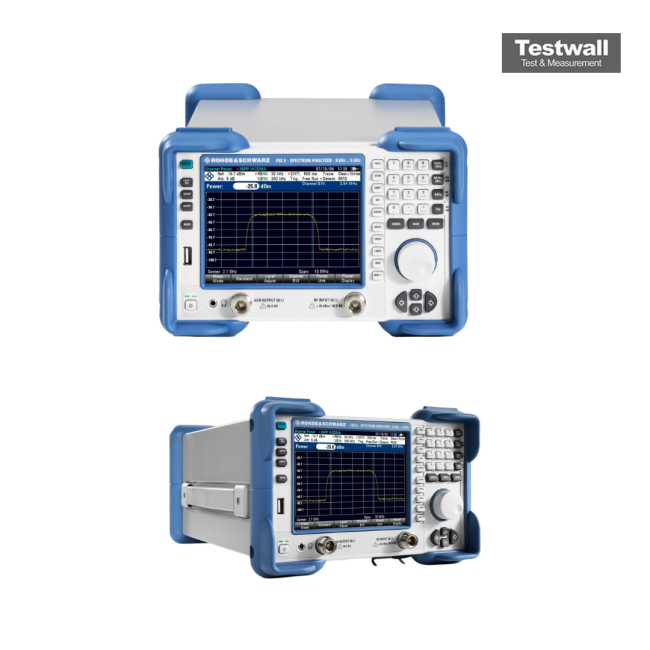

Rohde & Schwarz FSC6
9 kHz to 6 GHz Spectrum Analyser (Signal Analyser)
100 kHz to 6 GHz Frequency Range
6.5-inch color TFT LCD touchscreen, 640 x 480 pixels Display
100 Hz to 3 MHz Resolution Bandwidth (RBW)
< -95 dBc/Hz at 10 kHz offset (at 1 GHz carrier) Phase Noise
-150 dBm (typical, at 1 GHz, 1 Hz RBW, preamp on) Dynamic Range (DANL)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6 GHz |
| Display | 6.5-inch color TFT LCD touchscreen, 640 x 480 pixels |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Phase Noise | < -95 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Dynamic Range (DANL) | -150 dBm (typical, at 1 GHz, 1 Hz RBW, preamp on) |
| Reference Level Range | -80 dBm to +20 dBm |
| Input Impedance | 50 Ohm |
| Battery Operating Time | Up to 3 hours with internal battery pack |
| Weight | Approximately 4.5 kg (9.9 lbs) including battery |
| Power Supply | AC adapter (100–240 V, 50/60 Hz) or internal Li-ion battery |
Rohde & Schwarz FSC6 Options:
- FSC6 - B22 - Preamplifier, 100 kHz to 3 GHz/6 GHz (R&S FSC-B22)
| Model | FSC6 |
|---|
The Rohde and Schwarz FSC6 (Model 06) is a compact, cost-efficient spectrum analyser with a 9kHz to 6GHz range, high measurement accuracy, and robust RF performance. It supports direct access to settings, USB/LAN data transfer, and VGA display with a 5.7" LCD.
Designed for development, training, service, and maintenance, it allows storage/export of measurements, graphical analysis, and result comparisons with high repeatability.
Testwall can supply the used R&S FSC6 (Model 06), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSC6 (Model 06).
