Rohde & Schwarz FSH8
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Dynamic Range | Up to 100 dB |
| Display Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Power (Damage Level) | +30 dBm (1 W) |
| Battery Operating Time | Up to 3 hours with internal battery |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
| Interfaces | USB, LAN (Ethernet), SD card slot |
| Weight | Approximately 3.3 kg (7.3 lbs) including battery |
Rohde & Schwarz FSH8 Options:
- FSH8 - .03 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with preamplifier
- FSH8 - .13 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with tracking generator
- FSH8 - .23 - Handheld Spectrum Analyzer, 100 kHz to 3 GHz, with tracking generator and preamplifier
- FSH8 - .06 - Handheld Spectrum Analyzer, 100 kHz to 6 GHz, with preamplifier
- FSH8 - .26 - Handheld Spectrum Analyzer, 100 kHz to 6 GHz, with tracking generator and preamplifier
- FSH8 - .18 - Handheld Spectrum Analyzer, 10 MHz to 18 GHz
- FSH8 - FSH-B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH8 - FSH-K1 - Remote Control via RS-232-C
- FSH8 - FSH-K2 - Vector Transmission and Reflection Measurements
- FSH8 - FSH-K3 - Receiver Mode
- FSH8 - FSH-K4 - 3GPP FDD Code Domain Power BTS/Node B Measurement (for FSH3 model .23 only, as of serial no. 103500)
| Model | FSH8 |
|---|

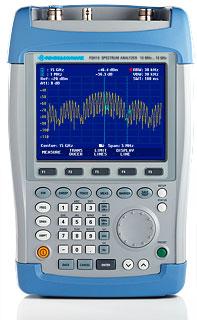

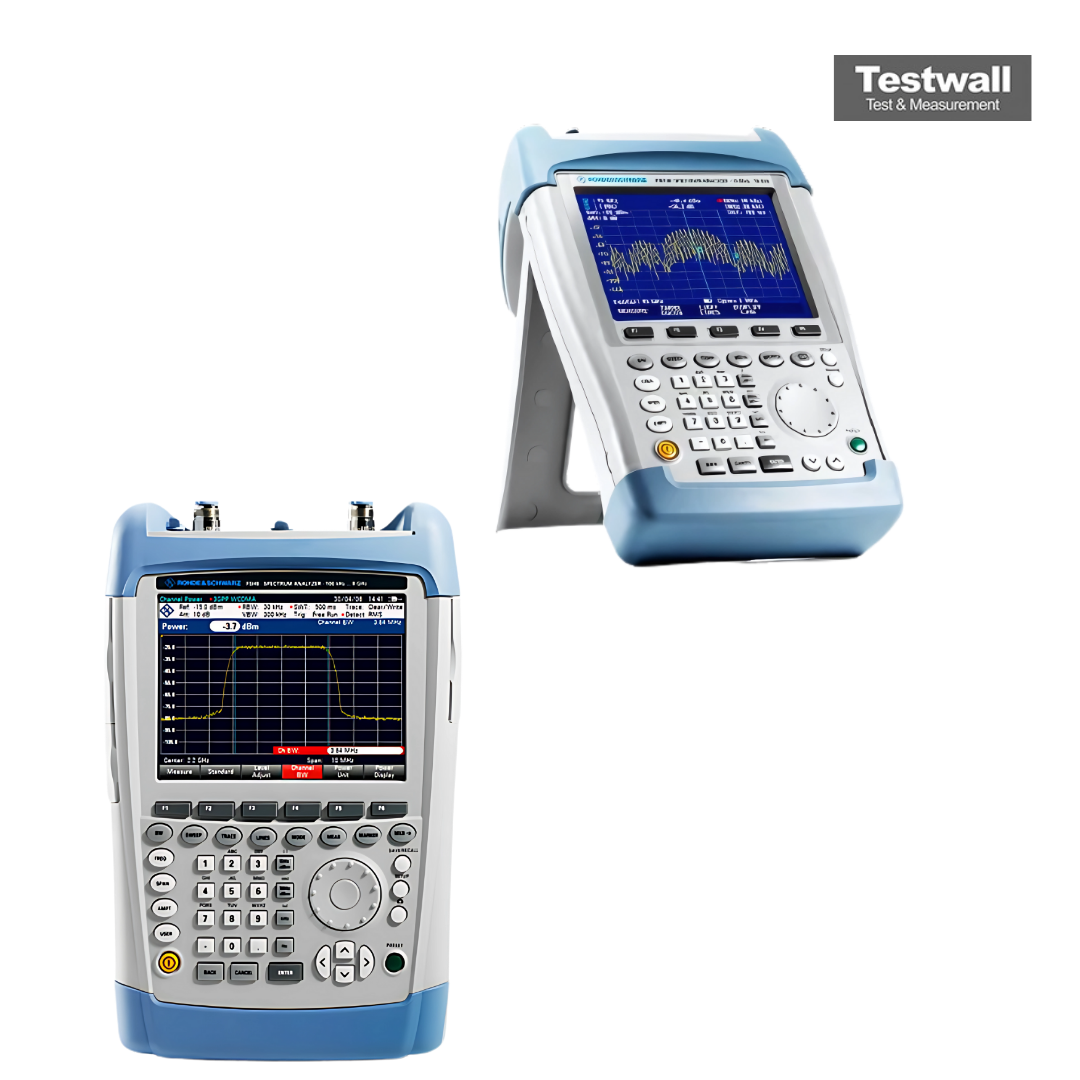

The Rohde and Schwarz FSH8 is a portable spectrum analyzer with a frequency range from 9 kHz to up to 20 GHz, offering high sensitivity and 20 MHz demodulation bandwidth ideal for LTE signal analysis. It features low measurement uncertainty and includes functions for all key transmitter system tests.
Equipped with an internal tracking generator, VSWR bridge, two-port network analyzer, and user-friendly automatic test sequences, it ensures versatility in field use. Its rugged, splash-proof design and 3 kg weight enhance mobility and durability.
Testwall can supply the used Rohde and Schwarz FSH8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSH8.
