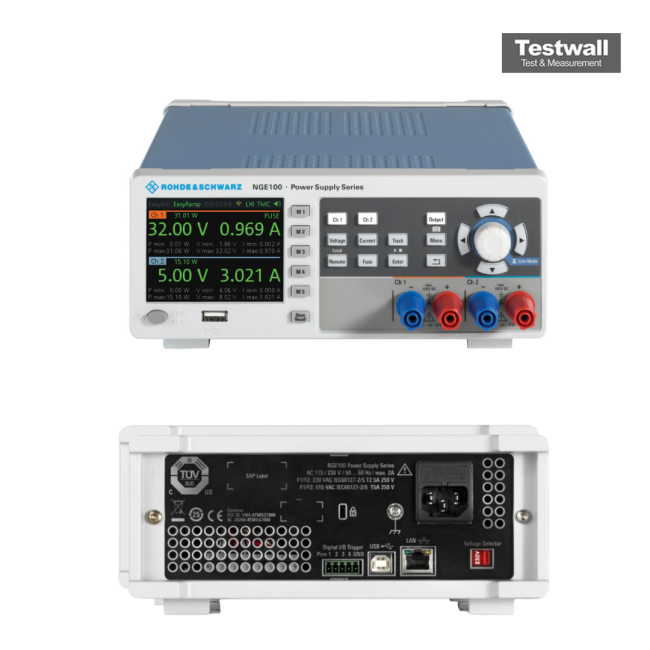

Rohde & Schwarz NGE102B
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Output Voltage Range | 0 V to 32 V per channel |
| Output Current Range | 0 A to 3 A per channel |
| Maximum Output Power | 100 W total (50 W per channel) |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Display | 3.5-inch color TFT LCD display |
| Interfaces | USB (Device & Host), LAN (LXI) |
| Operating Temperature Range | 0 °C to 40 °C |
| Power Supply Input | 100 V to 240 V AC, 50 Hz / 60 Hz |
Rohde & Schwarz NGE102B Options:
- NGE102B - NGE-K101 - Ethernet Remote Control (LAN/LXI with integrated web server)
- NGE102B - NGE-K102 - Wireless LAN Remote Control
- NGE102B - NGE-K103 - Digital Trigger I/O (4-bit)
| Model | NGE102B |
|---|
The Rohde and Schwarz NGE102B is a 2-channel DC power supply delivering up to 32V/3A per channel, with 66W max output and 10 mV/1 mA resolution. It supports EasyArb, electronic fuse, and FuseLink features with galvanically isolated, electrically equivalent channels.
Offering tracking for parallel/series operation and intuitive color-coded control, it features USB connectivity with optional Ethernet/WLAN for remote access, safeguarding both device and DUT.
Testwall can supply the used Rohde and Schwarz NGE102B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NGE102B.
