Rohde & Schwarz NGL201
| Attribute | Value |
|---|---|
| Output Channels | 1 |
| Output Voltage Range | 0 V to 20 V |
| Output Current Range | 0 A to 6 A |
| Maximum Output Power | 60 W |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 100 µA |
| Line Regulation (Voltage) | < 1 mV |
| Load Regulation (Voltage) | < 0.5 mV |
| Interface | USB, Ethernet (LAN), GPIB (optional) |
| Display | 4.3-inch color TFT touchscreen |
Rohde & Schwarz NGL201 Options:
- NGL201 - NGL-K102 - Wireless LAN remote control
- NGL201 - NGL-K103 - Digital trigger I/O
- NGL201 - NGL-B105 - IEEE-488 (GPIB) interface
| Model | NGL201 |
|---|

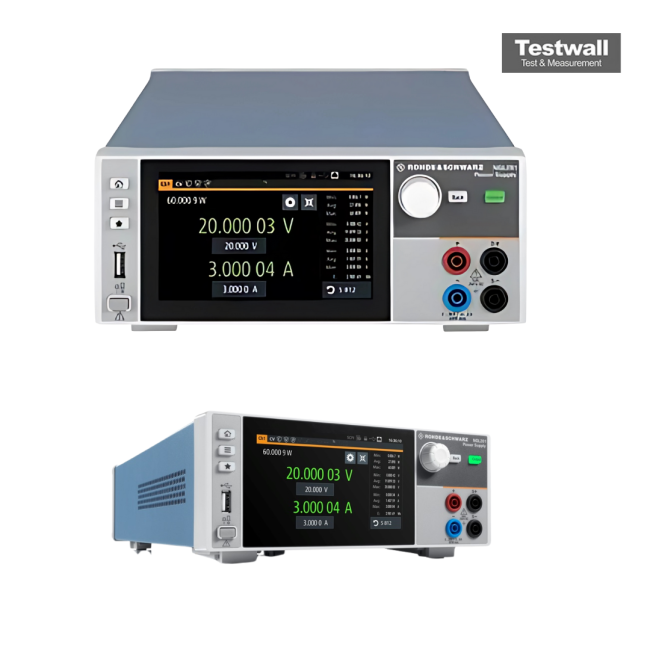

The Rohde and Schwarz NGL201 is a high-precision single-channel DC power supply offering 0 to 20 V output with up to 6 A current and 60 W power. It supports electronic load mode (up to 20 V/3 A) and features fine resolution of 10 µV/10 µA. Operating in two quadrants, it functions as both source and sink, with constant voltage, current, and resistance modes, and includes advanced protections, a high-resolution touchscreen, and USB/LAN connectivity.
Ideal for lab and development use, the NGL201 provides color-coded mode indicators, QuickArb functionality, electronic fuse, and logging capabilities to ensure precise and safe power delivery.
Testwall can supply the used Rohde and Schwarz NGL201, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NGL201.
