Rohde & Schwarz

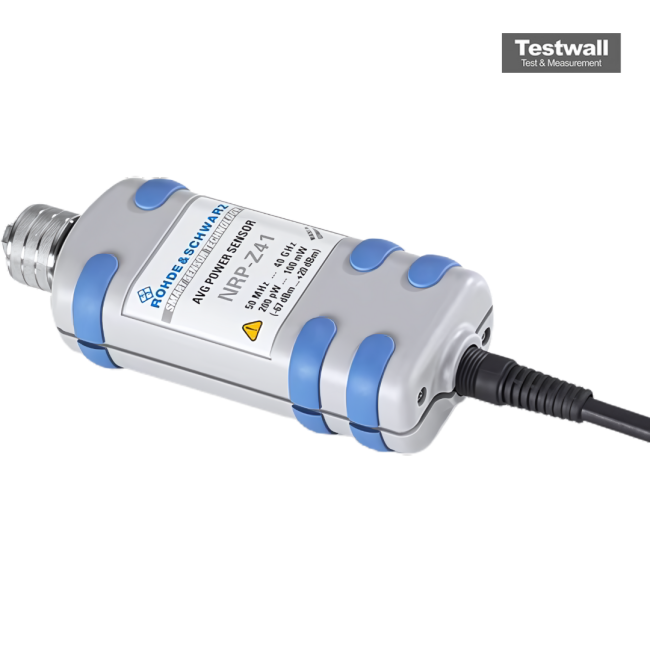

Rohde & Schwarz NRP-Z41
Three-Path Diode Power Sensor 50 MHz to 40 GHz
50 MHz to 40 GHz Frequency Range
>50 kHz Video Bandwidth
<8 µs Rise Time
2.92 mm male Connector
USB (full speed) Interfaces
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 40 GHz |
| Video Bandwidth | >50 kHz |
| Rise Time | <8 µs |
| Connector | 2.92 mm male |
| Interfaces | USB (full speed) |
| Sensor Type | peak and average (3-path diode) |
| Power Range | 200 pW to 100 mW (-67 to +20 dBm) |
| Maximum Power | 200 mW average, 1 W peak (10 µs) |
| SWR | <1.13 (to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 18 GHz), <1.30 (to 26.5 GHz), <1.35 (to 33 GHz), <1.37 (to 40 GHz) |
| Measurement Speed | 550 readings/s typ. (continuous average, 10 µs aperture) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters
The Rohde & Schwarz NRP-Z41 Power Sensor offers precise power measurements from -67 dBm to +20 dBm over a 40 GHz frequency range with a 2.92mm connector interface, ensuring high accuracy in demanding RF environments.
Ideal for laboratory and field applications, it provides consistent, real-time power readings in a compact and durable design.
Testwall can supply the used Rohde & Schwarz NRP-Z41, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z41.
