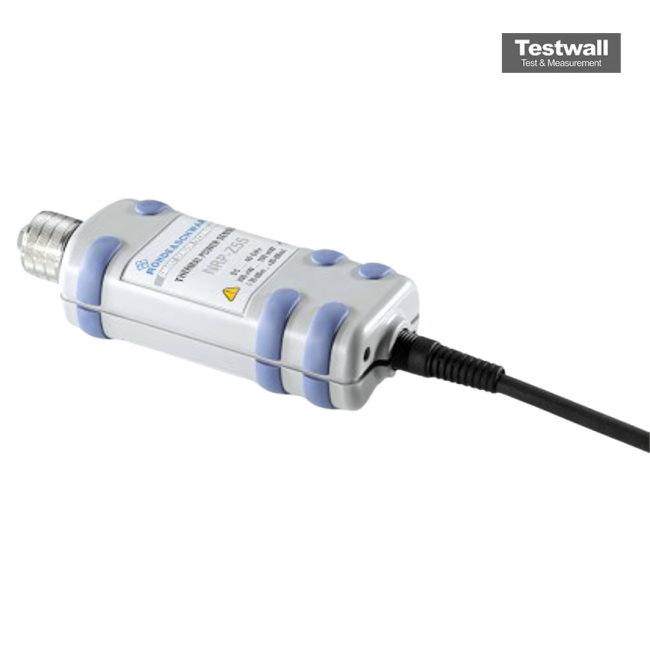

Rohde & Schwarz NRP-Z55
| Attribute | Value |
|---|---|
| Sensor Type | thermocouple |
| Connector | 2.92 mm male |
| Interfaces | USB (full speed) |
| Frequency Range | DC to 40 GHz (Opt. model .04: DC to 44 GHz) |
| Power Range | 300 nW to 100 mW (-35 to +20 dBm) |
| Maximum Power | 300 mW average, 10 W peak (1 µs) |
| SWR | <1.03 (DC to 100 MHz), <1.06 (to 2.4 GHz), <1.13 (to 12.4 GHz), <1.16 (to 18 GHz), <1.22 (to 26.5 GHz), <1.28 (to 40 GHz), <1.30 (to 44 GHz) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters
The Rohde & Schwarz NRP-Z55 is a thermal power sensor offering precise measurements across a wide frequency range of DC to 40 GHz with a dynamic power range from -35 dBm to +20 dBm (300 nW to 100 mW). Equipped with a 2.92 mm connector, it supports both direct PC connection via USB and operation with NRP power meters, delivering industry-leading measurement accuracy for calibration and reference applications.
Designed for high-accuracy tasks, this sensor minimizes noise and thermal interference, offers superior linearity, and provides fast response with over 500 measurements/s in buffered mode.
Testwall can supply the used Rohde & Schwarz NRP-Z55, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z55.
