Rohde & Schwarz NRP-Z85
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 110 GHz |
| Power Measurement Range | -30 dBm to +20 dBm |
| Connector Type | 1.0 mm (W) male |
| Measurement Uncertainty | ±0.9 dB (at 110 GHz) |
| SWR (Voltage Standing Wave Ratio) | ≤ 1.5 (typical) |
| Interface | Rohde & Schwarz NRP sensor interface (USB compatible via NRP-Z5 adapter) |
| Zeroing Time | Typically < 3 seconds |
| Operating Temperature Range | 0 °C to +55 °C |
| Dimensions (L × Diameter) | Approximately 165 mm × 25 mm |
| Weight | Approximately 300 g |
| Model | NRP-Z85 |
|---|

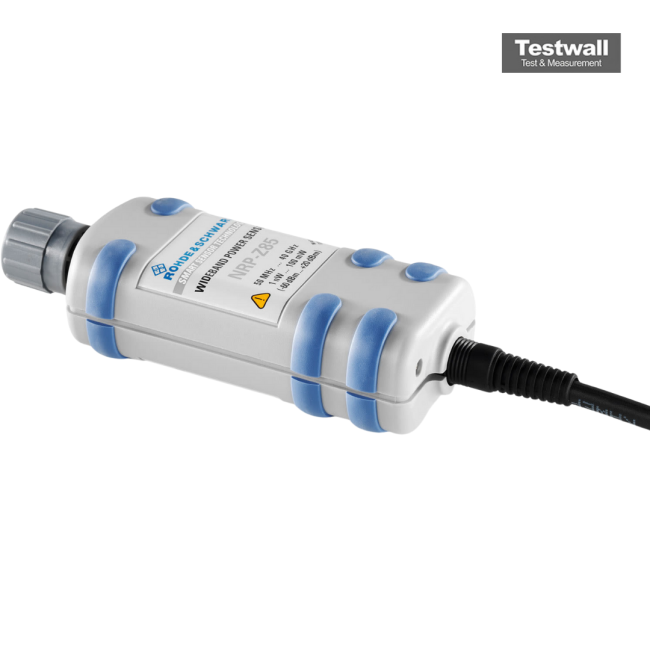

The Rohde and Schwarz NRP-Z85 Wideband Power Sensor offers a 50 MHz to 40 GHz frequency range with a -60 dBm to +20 dBm level range and a 2.92 mm male connector. It supports video bandwidth up to 30 MHz, enabling precise power measurements for demanding applications. With high resolution mode and 100 ps time resolution, it's ideal for capturing fast signal changes. Buffered mode achieves over 9000 measurements per second.
This sensor excels in radar and microwave link module testing. It can measure pulse widths down to 50 ns, ensuring accurate data even in complex scenarios. Accessories are available for PC or instrument integration.
Testwall can supply the used Rohde and Schwarz NRP-Z85, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP-Z85.
