Rohde & Schwarz NRP18T
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 18 GHz |
| Power Measurement Range | -67 dBm to +23 dBm (200 pW to 200 mW) |
| Connector Type | 2.92 mm (K) male |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Sensor Type | Thermal (True RMS) Power Sensor |
| Interface | USB and LAN (via R&S NRP2 base unit or R&S NRPxxSN) |
| SWR (VSWR) | ≤ 1.20 (50 MHz to 18 GHz) |
| Operating Temperature Range | 0 °C to +55 °C |
| Impedance | 50 Ohm |
| Maximum RF Input Power (Continuous) | +23 dBm (200 mW) |
Rohde & Schwarz NRP18T Options:
- NRP18T - NRP-Z4 - USB adapter cable (passive)
- NRP18T - NRP-Z3 - USB adapter cable (active)
- NRP18T - NRPZ-K1 - R&S NRPV license for one sensor
- NRP18T - NRP-Z5 - Sensor hub
| Model | NRP18T |
|---|

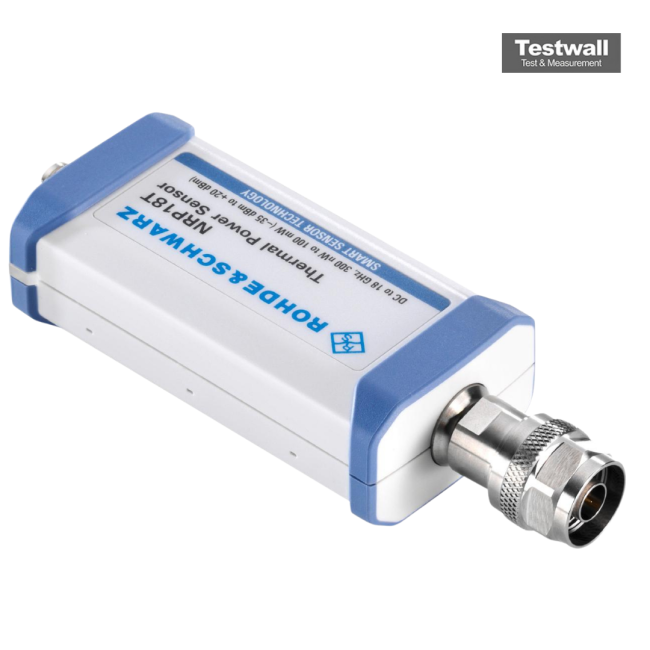

The Rohde & Schwarz NRP18T is a thermal RF power sensor designed for precise measurement across a wide frequency range of DC to 18 GHz. It accurately measures power levels from 300 nW to 100 mW (–35 dBm to +20 dBm), with a peak power handling capability of up to 20 W (1 µs) and average power of 300 mW. Equipped with an N (male) input connector, it ensures high reliability and performance in RF testing environments.
Ideal for applications requiring high dynamic range and thermal-based accuracy, the NRP18T is widely used in calibration labs, R&D, and production testing.
Testwall can supply the used Rohde & Schwarz NRP18T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP18T.
