Rohde & Schwarz NRP50S
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 50 GHz |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Connector | 2.4 mm male |
| Interfaces | USB |
| Sensor Type | peak and average (3-path diode) |
| Power Range | 100 pW to 100 mW (-70 to +20 dBm) |
| Maximum Power | 200 mW average, 1 W peak (10 µs) |
| SWR | <1.13 (50 MHz to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 18 GHz), <1.30 (to 26.5 GHz), <1.35 (to 33 GHz), <1.37 (to 40 GHz), <1.40 (to 50 GHz) |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Dimensions | 48 × 30 × 138 mm |
| Weight | <0.20 kg |
Compatible power meters
Rohde & Schwarz NRP50S Options:
- NRP50S - NRP-Z4 - USB adapter cable (passive)
- NRP50S - NRP-Z3 - USB adapter cable (active)
- NRP50S - NRPZ-K1 - R&S NRPV license for one sensor
- NRP50S - NRP-Z5 - Sensor hub

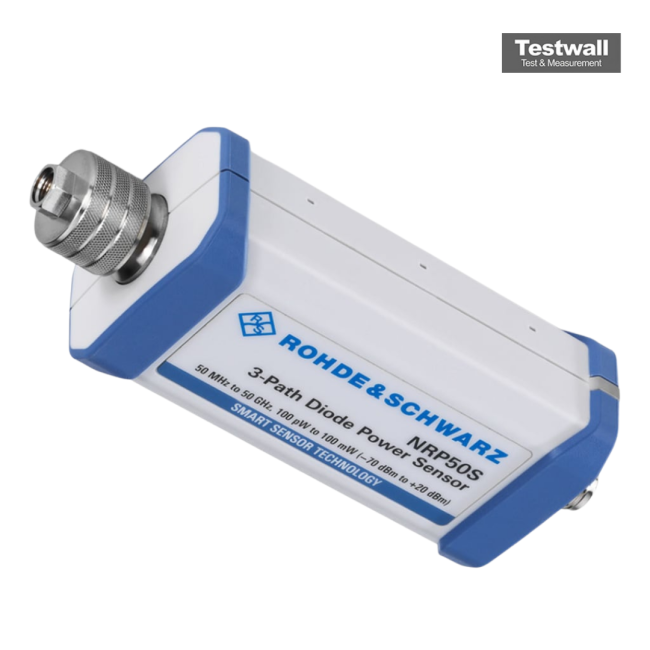

The Rohde and Schwarz NRP50S is a three-path diode power sensor covering a wide frequency range from 50 MHz to 50 GHz and power levels from 100 pW to 100 mW. It features a 2.4 mm male connector and offers precise, fully characterized measurements for high-frequency applications.
This sensor includes advanced averaging functions to reduce measurement time and ensure minimal uncertainty, along with built-in trigger I/O for versatile usage. It requires a USB Sensor Cable R&S NRP-ZKU or Power Sensor Cable R&S NRP-ZK6 for connection.
Testwall can supply the used Rohde and Schwarz NRP50S, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP50S.
