Rohde & Schwarz NRP50TN
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 18 GHz |
| Power Measurement Range | -67 dBm to +26 dBm (200 pW to 400 mW) |
| Connector Type | N-Type (50 Ω) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Interface | USB (compatible with R&S NRP2 and R&S NRPxxS base units) |
| Detector Type | Three-path diode power sensor |
| Dynamic Range | 93 dB |
| Maximum Input Power (non-destructive) | +33 dBm (2 W) |
| Operating Temperature Range | 0 °C to +55 °C |
| VSWR (Maximum) | 1.15 (at 18 GHz) |
Rohde & Schwarz NRP50TN Options:
- NRP50TN - NRP-Z4 - USB adapter cable (passive)
- NRP50TN - NRP-Z3 - USB adapter cable (active)
- NRP50TN - NRPZ-K1 - R&S NRPV license for one sensor
- NRP50TN - NRP-Z5 - Sensor hub
| Model | NRP50TN |
|---|

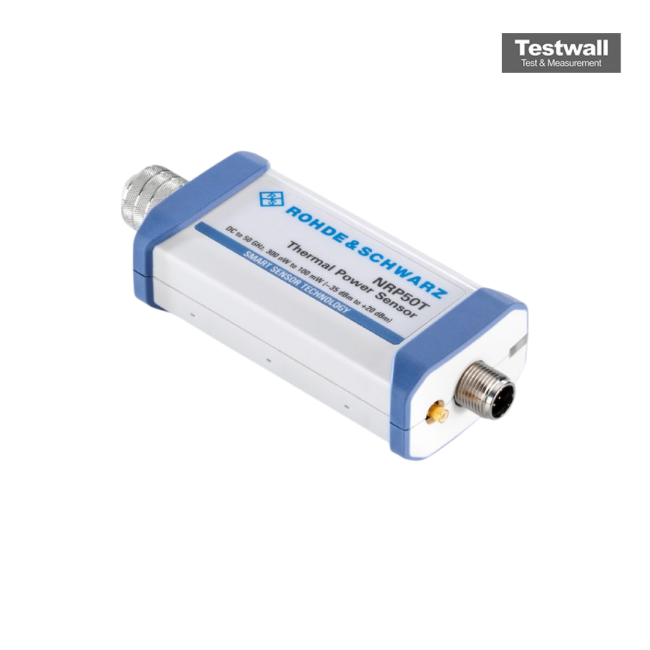

The Rohde and Schwarz NRP50TN is a high-precision thermal power sensor supporting DC to 50 GHz with a level range from -35 dBm to +20 dBm. Designed for LAN operation with PoE, it features a 2.4 mm(m) connector and can measure from 300 nW to 100 mW. This LAN model provides excellent accuracy and is immune to thermal environmental effects, ensuring stable readings across varied applications.
Ideal for reference measurements, the NRP50TN tolerates all modulation types. A PoE switch (R&S NRP-ZAP2) is required if the LAN does not support PoE.
Testwall can supply the used Rohde and Schwarz NRP50TN, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP50TN.
