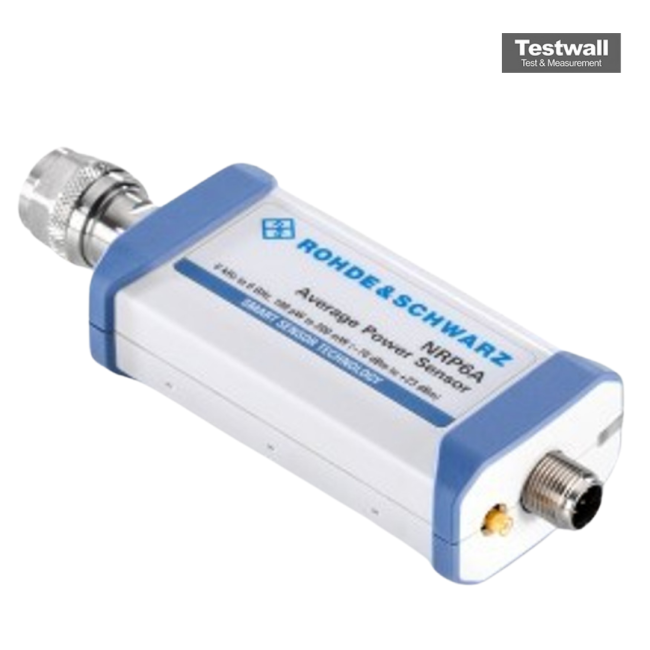

Rohde & Schwarz NRP6A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 6 GHz |
| Power Measurement Range | -60 dBm to +20 dBm |
| Connector Type | N-Type (female) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Interface | USB (compatible with R&S NRP2 and NRP power meter base units) |
| Sensor Type | Three-path diode power sensor |
| Dynamic Range | 80 dB |
| Maximum Input Power | +33 dBm (average), +43 dBm (peak) |
| Operating Temperature Range | 0 °C to +55 °C |
| Impedance | 50 Ω |
Rohde & Schwarz NRP6A Options:
- NRP6A - NRP-Z4 - USB adapter cable (passive)
- NRP6A - NRP-Z3 - USB adapter cable (active)
- NRP6A - NRPZ-K1 - R&S NRPV license for one sensor
- NRP6A - NRP-Z5 - Sensor hub
| Model | NRP6A |
|---|
The Rohde and Schwarz NRP6A is a precision average power sensor operating from 8 kHz to 6 GHz with a dynamic range from -70 dBm to +23 dBm. It utilizes an N(m) connector and supports USB or 6-pole interface cable connections. Designed for EMC applications, it measures continuous average power with outstanding impedance matching and covers critical telecommunications and low-frequency bands.
Ideal for EMC testing, this sensor provides accurate average power readings, critical for assessing interference across a broad frequency spectrum. Compatible accessories are required for computer or instrument connections.
Testwall can supply the used Rohde and Schwarz NRP6A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP6A.
