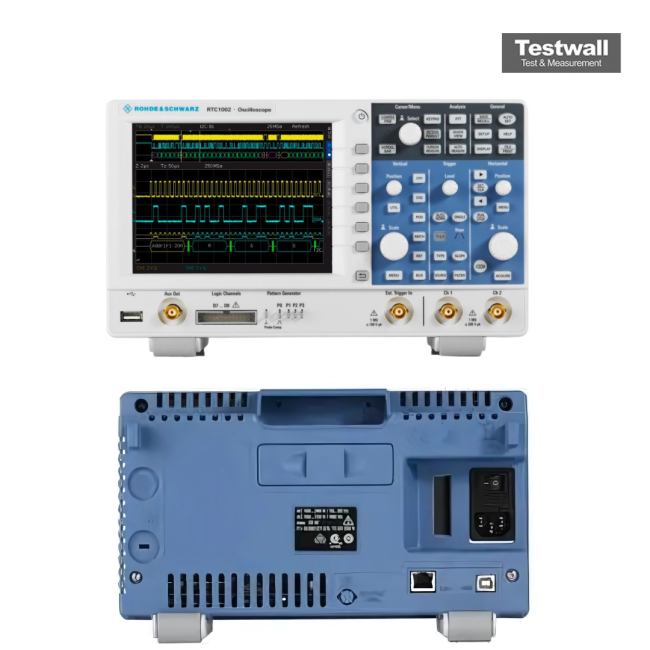

Rohde & Schwarz RTC1002 + RTC-B221 Digital Oscilloscope, 100 MHz, 2 channels
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GSa/s |
| Memory Depth | 2 Mpts (with RTC-B221 upgrade) |
| Vertical Resolution | 8-bit |
| Display | 6.5-inch WVGA color LCD, 800 x 480 pixels |
| Input Impedance | 1 MΩ || 13 pF |
| Time Base Range | 2 ns/div to 50 s/div |
| Trigger Types | Edge, Glitch, Width, Runt, Slew Rate, Video, Pattern, Serial Bus |
| Interface / Connectivity | USB Device, USB Host, Ethernet (LAN), integrated logic analyzer (optional), I²C/SPI/UART serial decode |
Rohde & Schwarz RTC1002 + RTC-B221 Digital Oscilloscope, 100 MHz, 2 channels Options:
- RTC1002 - RTC-B220 - Upgrade of R&S®RTC1002 to 70 MHz bandwidth
- RTC1002 - RTC-B221 - Upgrade of R&S®RTC1002 to 100 MHz bandwidth
- RTC1002 - RTC-B222 - Upgrade of R&S®RTC1002 to 200 MHz bandwidth
- RTC1002 - RTC-B223 - Upgrade of R&S®RTC1002 to 300 MHz bandwidth
- RTC1002 - RTC-B1 - Mixed signal upgrade for non-MSO models, 300 MHz
- RTC1002 - RTC-B6 - Waveform generator
- RTC1002 - RTC-K1 - I²C/SPI serial triggering and decoding
- RTC1002 - RTC-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTC1002 - RTC-K3 - CAN/LIN serial triggering and decoding
- RTC1002 - RTC-PK1 - Application bundle (R&S®RTC-K1, R&S®RTC-K2, R&S®RTC-K3, R&S®RTC-B6)
| Model | RTC1002 |
|---|
The Rohde & Schwarz RTC1002 + RTC-B221 is a 2-channel digital oscilloscope from the RTC1000 series with a 100 MHz bandwidth and 2 GSPS sampling rate. Featuring 2 Mpts memory depth, a 6.5" VGA color display, and high-performance protocol analysis, it combines oscilloscope, logic and protocol analyzer, frequency analyzer, and more into one compact unit. It includes R&S®RT-ZP03 passive probes, a waveform generator, and multiple interface options including USB and LAN.
This all-in-one oscilloscope supports I2C, SPI, UART/RS232/RS422/RS485, CAN, and LIN protocols. It's optimized for minimal bench space and fast operation with 50ppm timebase accuracy and 10000 waveforms/s update rate.
Testwall can supply the used Rohde & Schwarz RTC1002 + RTC-B221, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTC1002 + RTC-B221.
