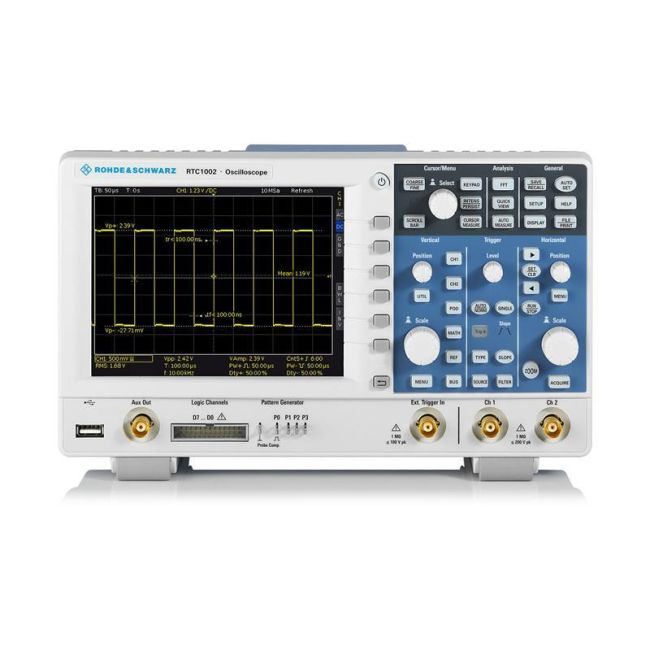

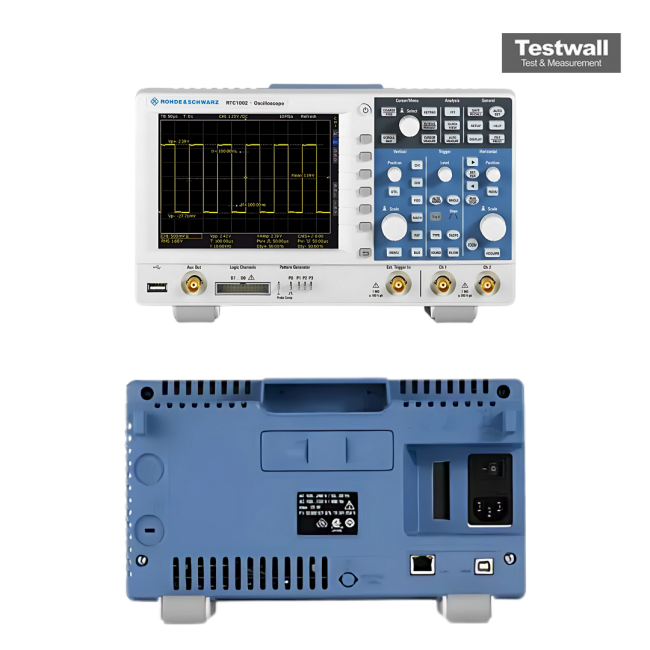

Rohde & Schwarz RTC1002 + RTC-B222 Digital Oscilloscope, 200 MHz, 2 channels
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 Gsample/s |
| Memory Depth | 2 Mpoints per channel |
| Vertical Resolution | 8 bit |
| Timebase Range | 2 ns/div to 50 s/div |
| Display | 6.5-inch WVGA color LCD (800 x 480 pixels) |
| Input Impedance | 1 MΩ / 13 pF |
| Included Option | RTC-B222 – Mixed Signal Oscilloscope (MSO) with 16 digital channels |
| Waveform Update Rate | Up to 50,000 waveforms/second |
Rohde & Schwarz RTC1002 + RTC-B222 Digital Oscilloscope, 200 MHz, 2 channels Options:
- RTC1002 - RTC-B220 - Upgrade of R&S®RTC1002 to 70 MHz bandwidth
- RTC1002 - RTC-B221 - Upgrade of R&S®RTC1002 to 100 MHz bandwidth
- RTC1002 - RTC-B222 - Upgrade of R&S®RTC1002 to 200 MHz bandwidth
- RTC1002 - RTC-B223 - Upgrade of R&S®RTC1002 to 300 MHz bandwidth
- RTC1002 - RTC-B1 - Mixed signal upgrade for non-MSO models, 300 MHz
- RTC1002 - RTC-B6 - Waveform generator
- RTC1002 - RTC-K1 - I²C/SPI serial triggering and decoding
- RTC1002 - RTC-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTC1002 - RTC-K3 - CAN/LIN serial triggering and decoding
- RTC1002 - RTC-PK1 - Application bundle (R&S®RTC-K1, R&S®RTC-K2, R&S®RTC-K3, R&S®RTC-B6)
| Model | RTC1002 |
|---|
The Rohde & Schwarz RTC1002 with RTC-B222 upgrade is a versatile 2-channel digital oscilloscope offering 200 MHz bandwidth, 2 GS/s sampling rate, and 2 Mpts memory depth. It integrates 8 instruments in one compact form factor including oscilloscope, logic and protocol analyzers, and waveform generators.
Ideal for debugging embedded systems, it supports optional I2C, SPI, UART, CAN, and LIN protocols, and includes a 6.5" VGA display with rapid 10,000 waveforms/s update rate.
Testwall can supply the used Rohde & Schwarz RTC1002 + RTC-B222 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTC1002 + RTC-B222 Digital Oscilloscope.
