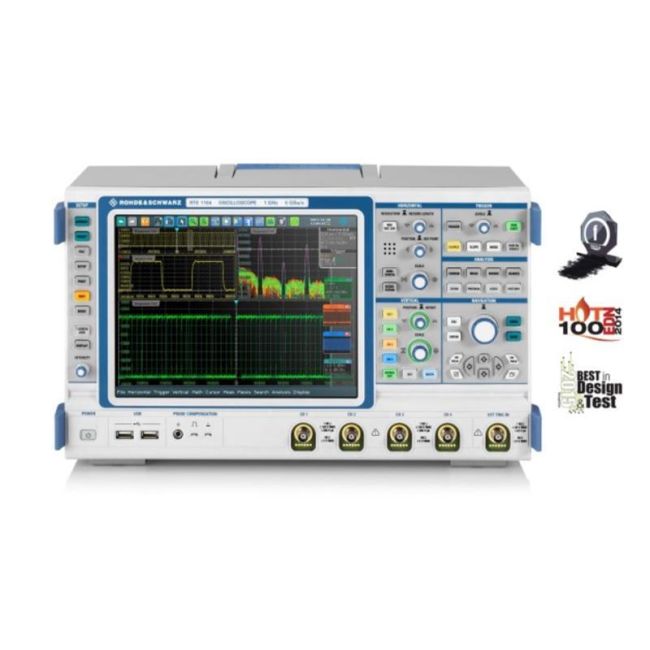

Rohde & Schwarz RTE1202
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 50 Mpoints per channel |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Input Impedance | 1 MΩ / 50 Ω |
| Time Base Range | 1 ns/div to 50 s/div |
| Waveform Update Rate | Up to 1,000,000 waveforms/s |
| Connectivity | USB, LAN (LXI), HDMI |
Rohde & Schwarz RTE1202 Options:
- RTE1202 - RTE-B1 - Mixed Signal Option, 400 MHz, 5 Gsample/s, 16 channels, 100 Msample/channel
- RTE1202 - RTE-B10 - GPIB Interface
- RTE1202 - RTE-B18 - Replacement SSD Hard Disk, incl. firmware
- RTE1202 - RTE-B19 - Replacement Hard Disk, incl. firmware
- RTE1202 - RTE-B101 - Memory Upgrade, 20 Msample per channel
- RTE1202 - RTE-B102 - Memory Upgrade, 50 Msample per channel
- RTE1202 - RTE-K1 - I2C/SPI Serial Triggering and Decoding
- RTE1202 - RTE-K2 - UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding
- RTE1202 - RTE-K3 - CAN/LIN Serial Triggering and Decoding
- RTE1202 - RTE-K4 - FlexRay™ Serial Triggering and Decoding
- RTE1202 - RTE-K5 - I²S Serial Triggering and Decoding
- RTE1202 - RTE-K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTE1202 - RTE-K7 - ARINC 429 Triggering and Decoding
- RTE1202 - RTE-K8 - Ethernet Serial Decoding
- RTE1202 - RTE-K9 - CAN-FD Serial Triggering and Decoding
- RTE1202 - RTE-K10 - SENT Serial Triggering and Decoding
- RTE1202 - RTE-K17 - High Definition Mode, vertical resolution up to 16 bit
- RTE1202 - RTE-K18 - Spectrum Analysis
- RTE1202 - RTE-K31 - Power Analysis
- RTE1202 - RTE-K50 - Manchester and NRZ Serial Triggering and Decoding
- RTE1202 - RTE-K55 - MDIO Serial Triggering and Decoding
- RTE1202 - RTE-K60 - USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
- RTE1202 - RTE-K65 - SpaceWire Serial Triggering and Decoding
| Model | RTE1202 |
|---|
The Rohde & Schwarz RTE1202 is a 2-channel digital oscilloscope with a 2 GHz bandwidth, 5 GSa/s sampling rate per channel, and a memory depth of up to 100 MSa. It features a single-core A/D converter with up to 16-bit vertical resolution and comes with two 500 MHz passive voltage probes.
Designed for precision, it offers full bandwidth even at 500 µV/div, deep memory, digital trigger system, and captures one million waveforms/s to diagnose rare signal faults swiftly.
Testwall can supply the used Rohde & Schwarz RTE1202, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTE1202.
