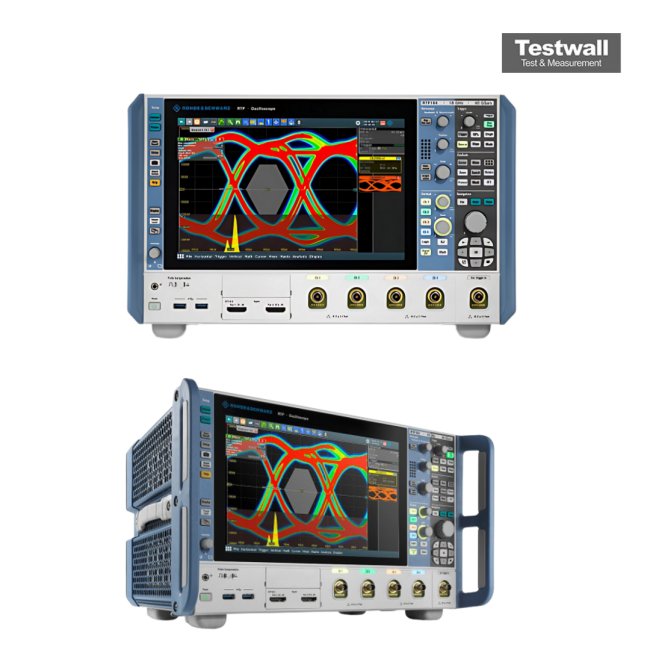

Rohde & Schwarz RTP084
RTP High-Performance Oscilloscope, 8 GHz, 4 Channels
8 GHz Bandwidth
4 Number of Channels
20 Gsample/s (single channel), 10 Gsample/s (all channels) Sample Rate
500 Mpoints per channel (standard), up to 2 Gpoints (optional) Memory Depth
8 bit (up to 16 bit in high-definition mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 Gsample/s (single channel), 10 Gsample/s (all channels) |
| Memory Depth | 500 Mpoints per channel (standard), up to 2 Gpoints (optional) |
| Vertical Resolution | 8 bit (up to 16 bit in high-definition mode) |
| Rise Time | 46 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Connectivity | USB, LAN (LXI), DisplayPort, GPIB (optional) |
Rohde & Schwarz RTP084 Options:
- RTP084 - RTP-B1 - Mixed signal option, additional 16 logic channels (400 MHz)
- RTP084 - RTP-B1E - Digital extension port for R&S RT-ZVC usage with R&S RTP oscilloscope, included in R&S RTP-B1
- RTP084 - RTP-B6 - Arbitrary waveform generator, 100 MHz, 2 analog channels, 8-bit pattern generator
- RTP084 - RTP-B7 - 16 GHz differential pulse source with reference output
- RTP084 - RTP-B19 - Additional solid state disk
- RTP084 - RTP-B21 - Adapter rear option slot
- RTP084 - RTP-B101 - Memory upgrade, 100 Msample per channel
- RTP084 - RTP-B102 - Memory upgrade, 200 Msample per channel
- RTP084 - RTP-B105 - Memory upgrade, 500 Msample per channel
- RTP084 - RTP-B110 - Memory upgrade, 1 Gsample per channel
- RTP084 - RTP-K1 - I2C/SPI serial triggering and decoding
- RTP084 - RTP-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTP084 - RTP-K3 - CAN/LIN serial triggering and decoding
- RTP084 - RTP-K8 - Ethernet serial decoding
- RTP084 - RTP-K9 - CAN-FD serial triggering and decoding
- RTP084 - RTP-K12 - Jitter analysis
- RTP084 - RTP-K17 - High definition mode
- RTP084 - RTP-K19 - Zone trigger
- RTP084 - RTP-K21 - USB 2.0 compliance test
- RTP084 - RTP-K22 - Ethernet compliance test (10/100/1000BASE-T)
- RTP084 - RTP-K23 - Ethernet compliance test (10GBASE-T)
- RTP084 - RTP-K24 - IEEE 100BASE-T1 (BroadR-Reach) compliance test
- RTP084 - RTP-K25 - Ethernet compliance test (2.5G/5G-BASE-T)
- RTP084 - RTP-K26 - MIPI D-PHY compliance test
- RTP084 - RTP-K37 - Spectrogram
- RTP084 - RTP-K40 - MIPI RFFE serial triggering and decoding
- RTP084 - RTP-K42 - MIPI D-PHY serial triggering and decoding
- RTP084 - RTP-K44 - MIPI M-PHY serial triggering and decoding
- RTP084 - RTP-K50 - Manchester and NRZ serial triggering and decoding
- RTP084 - RTP-K52 - 8b10b serial decoding
- RTP084 - RTP-K55 - MDIO serial triggering and decoding
- RTP084 - RTP-K57 - IEEE 100BASE-T1 serial triggering and decoding
- RTP084 - RTP-K60 - USB 1.0/1.1/2.0/HSIC serial triggering and decoding
- RTP084 - RTP-K61 - USB 3.1 Gen 1 serial triggering and decoding
- RTP084 - RTP-K63 - USB power delivery serial triggering and decoding
- RTP084 - RTP-K64 - USB 3.1 SSIC serial triggering and decoding
- RTP084 - RTP-K72 - PCI Express 1.1/2.0 serial triggering and decoding
- RTP084 - RTP-K81 - PCI Express 1.1/2.0 compliance test
- RTP084 - RTP-K86 - Energy-efficient Ethernet compliance test (10M/100M/1G-BASE-T)
- RTP084 - RTP-K87 - IEEE 1000BASE-T1 compliance test
- RTP084 - RTP-K91 - DDR3/DDR3L/LPDDR3 signal integrity debug and compliance test
- RTP084 - RTP-K99 - R&S ScopeSuite automation
- RTP084 - RTP-K121 - Deembedding base option
- RTP084 - RTP-K122 - Realtime deembedding extension
| Model | RTP084 |
|---|
The Rohde and Schwarz RTP084 Oscilloscope offers bandwidth options from 4 GHz to 8 GHz, a max sample rate of 20 Gsample/s, and up to 2 Gsample memory depth. It supports realtime deembedding and enables triggering on all events at full bandwidth, ensuring accurate and fast signal analysis.
Ideal for advanced debugging, it delivers 1 million waveforms/s and a high-precision digital trigger without bandwidth constraints, in a compact, quiet design for seamless lab integration.
Testwall can supply the used Rohde and Schwarz RTP084, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTP084.
