Rohde & Schwarz

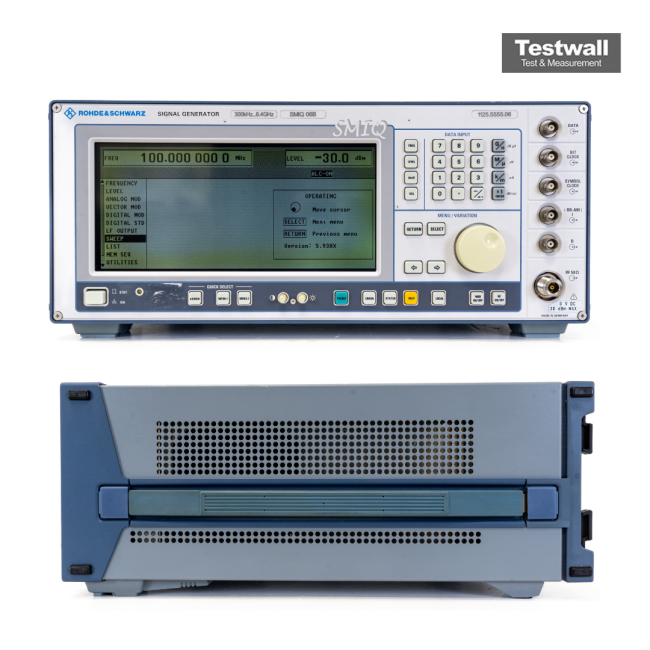

Rohde & Schwarz SMIQ
Vector Signal Generator, Wide output frequency range from 300 kHz to 6.4 GHz Signal Generator
AM, FM, ΦM, pulse, I/Q Modulation
0.1 Hz Frequency Resolution
< 3 ms; < 500 µs list mode Switching Speed
12 MHz (I/Q) Modulation Bandwidth
GPIB, RS-232 Interfaces
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse, I/Q |
| Frequency Resolution | 0.1 Hz |
| Switching Speed | < 3 ms; < 500 µs list mode |
| Modulation Bandwidth | 12 MHz (I/Q) |
| Interfaces | GPIB, RS-232 |
| Frequency Range | 300 kHz to 2.2, 3.3, 4.4 or 6.4 GHz (SMIQ02B/03B/04B/06B) |
| Output Power | -144 to +13 dBm (PEP, SMIQ02B/03B), +10 dBm (SMIQ04B/06B) |
| SSB Phase Noise | < -126 dBc/Hz at 1 GHz, 20 kHz offset |
| Level Accuracy | < 0.5 dB (to 2.5 GHz), < 0.9 dB (2.5 to 4 GHz), < 1.2 dB (4 to 6.4 GHz) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
The Rohde and Schwarz SMIQ Signal Generator (B series) supports analog and digital modulation with a frequency range up to 6.4 GHz, designed for advanced communication testing.
Ideal for 3rd-generation digital mobile radio development, it ensures accurate, reliable signal generation across a wide frequency spectrum.
Testwall can supply the used Rohde and Schwarz SMIQ, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz SMIQ.
Options and configurations
- Timebase Aging: 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day (Opt. B1)
