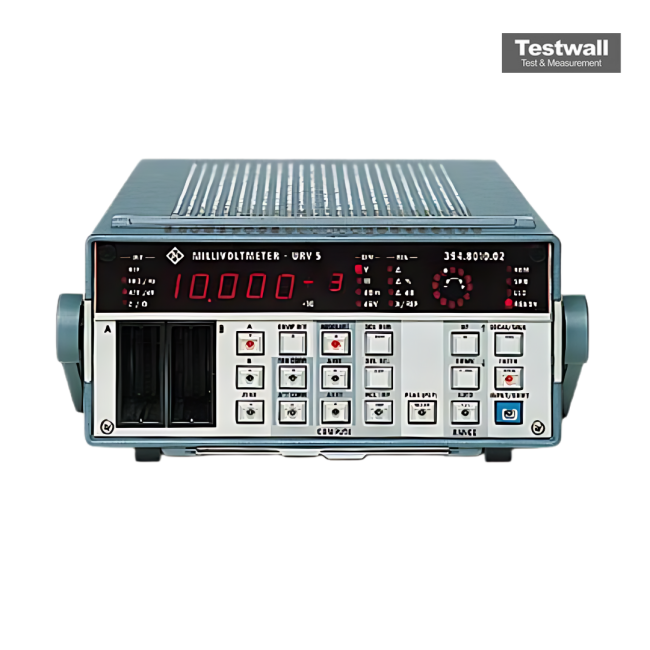

Rohde & Schwarz URV5-Z
Voltage Sensors Power Meters and Power Sensors
DC to 9.3 GHz Frequency Range
-60 dBm to +20 dBm Power Measurement Range
N-type (50 Ω) Connector Type
50 Ω Impedance
±0.2 dB (typical) Measurement Uncertainty
| Attribute | Value |
|---|---|
| Frequency Range | DC to 9.3 GHz |
| Power Measurement Range | -60 dBm to +20 dBm |
| Connector Type | N-type (50 Ω) |
| Impedance | 50 Ω |
| Measurement Uncertainty | ±0.2 dB (typical) |
| VSWR | ≤ 1.15 (up to 2 GHz), ≤ 1.25 (up to 9.3 GHz) |
| Compatible Instrument | Rohde & Schwarz URV5 Voltmeter |
| Sensor Type | Thermal Power Sensor (Diode-based) |
| Operating Temperature Range | 0 °C to +55 °C |
| Maximum Input Power | +23 dBm (200 mW) |
Rohde & Schwarz URV5-Z Options:
- URV5-Z7 - 0395.2615.02 - RF Probe with case, ground cable, ground sleeve and strip, hook and solder tip, 200 µV to 10 (1000) V, 20 kHz to 1 GHz
- URV5-Z1 - 0395.0512.02 - DC Probe with ground cable, clip-on tip and BNC adapter, 1 mV to 400 V
- URV5-Z2 - 0395.1019.02 - 10 V Insertion Unit 50 Ω, 3 GHz with 1.3 m cable
- URV5-Z2 - 0395.1019.05 - 10 V Insertion Unit 50 Ω, 3 GHz with 5 m cable
- URV5-Z4 - 0395.1619.02 - 100 V Insertion Unit 50 Ω, 3 GHz with 1.3 m cable
- URV5-Z4 - 0395.1619.05 - 100 V Insertion Unit 50 Ω, 3 GHz with 5 m cable
- URV-Z6 - 0292.5364.02 - Accessory Set including 20/40 dB plug-on dividers, 50 Ω BNC adapter with sleeve for plug-on divider, ground sleeve and strip (for RF probe)
- URV-Z50 - 0394.9816.50 - 50 Ω Adapter (BNC female) with adapter to BNC male (for RF probe), 20 kHz to 1 GHz
- URV-Z3 - 0243.9118.70 - 75 Ω Adapter with adapters to BNC male, 2.5/6 and 1.6/5.6 connector (for RF probe), 20 kHz to 500 MHz
- RNA - 0272.4510.50 - Precision Termination 1 W, 50 Ω, 0 GHz to 18 GHz (SWR <1.02 to 1 GHz) (for Insertion Units URV5-Z2, URV5-Z4)
- RNB - 0272.4910.50 - Termination 1 W, 50 Ω, 0 GHz to 4 GHz (SWR <1.05 to 1 GHz) (for Insertion Units URV5-Z2, URV5-Z4)
| Model | URV5-Z |
|---|
The Rohde and Schwarz URV5-Z voltage sensors enable precise voltage and power measurements ranging from 200 μV to 1000 V and 1 nW to 200 W, across 9 kHz to 3 GHz frequency.
Ideal for RF and microwave labs, test facilities, and service departments, the URV5-Z bridges the gap between low-frequency and microwave power measurement.
Testwall can supply the used Rohde and Schwarz URV5-Z, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz URV5-Z.
